Fujifilm 700 Series Standard Gastroscope
Fujifilm 700 Series Standard Gastroscope
Routine video gastroscope from the Eluxeo 700 Series.
Brand:
FujiFilm
Code: EG760R
APN: 14547410339687 Supplier Code: EG760R
APN: 14547410339687 Supplier Code: EG760R
EG-760R
This routine gastroscope from the new ELUXEO 700 series is equipped with CMOS technology and provides HD images and videos for daily practice. Close focus allows observation from as little as 2mm in depth.
| GENERAL | ||
|---|---|---|
| Field of View | 140° | |
| Viewing direction | 0° (Forward) | |
| Observation Range | 2~100mm | |

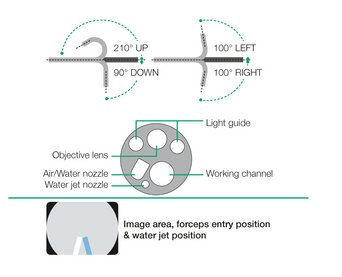

| Bending capability |
|
|
| Working length | 1,100 mm | |
| Total length | 1,400 mm | |
| Distal end diameter | 9.2 mm | |
| Flexible portion diameter | 9.3 mm | |
| Minimum instrument channel diameter | 2.8 mm | |
| Image Size | Super Image |
| PRODUCT MANUALS | |
|---|---|
| Fujifilm 700 Series Standard Gastroscope - Product Manual |
FEATURES
EG-760R
This routine gastroscope from the new ELUXEO 700 series is equipped with CMOS technology and provides HD images and videos for daily practice. Close focus allows observation from as little as 2mm in depth.
SPECIFICATIONS
| GENERAL | ||
|---|---|---|
| Field of View | 140° | |
| Viewing direction | 0° (Forward) | |
| Observation Range | 2~100mm | |
| Bending capability |
|
|
| Working length | 1,100 mm | |
| Total length | 1,400 mm | |
| Distal end diameter | 9.2 mm | |
| Flexible portion diameter | 9.3 mm | |
| Minimum instrument channel diameter | 2.8 mm | |
| Image Size | Super Image |
DOWNLOADS
| PRODUCT MANUALS | |
|---|---|
| Fujifilm 700 Series Standard Gastroscope - Product Manual |
