CAD EYE has been developed utilising AI deep learning technology and is compatible with Fujifilm’s ELUXEO™ endoscopy series to support endoscopic lesion detection and characterisation in the colon. CAD EYE works with the EX-1 expansion unit.
Brand: FujiFilm    Code: EX1
APN: 9319499195526    Supplier Code:

Accelerate Innovation

Improving the detection rate of difficult to discover lesions has been one of the major challenges within the field of endoscopy in recent years. Fujifilm has continuously worked on the development of image processing technologies such as Linked Color Imaging (LCI) and Blue Light Imaging (BLI) utilising specific wavelengths of light to support early cancer detection and characterisation. Recently Fujifilm has developed a new technology known as “CAD EYE” to support colonic polyp detection and characterisation during colonoscopy, utilising Fujifilm's medical AI technology named REiLI. CAD EYE is a customised detection and characterisation support compatible with the ELUXEO system.

Cad Eye Supports Detection & Characterisation - Customised for ELUXEO USERS

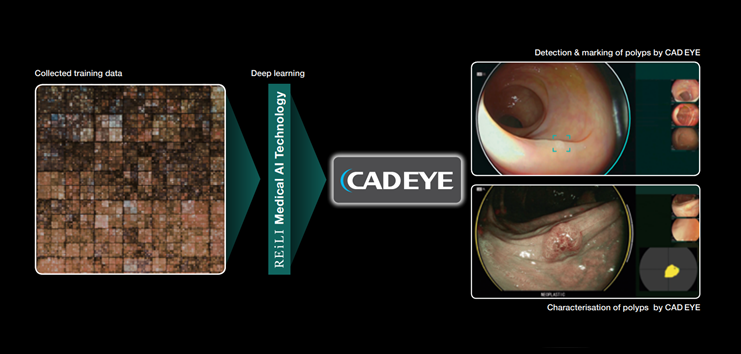

CAD EYE has been developed utilising AI deep learning technology and is compatible with Fujifilm’s ELUXEO™ endoscopy series to support endoscopic lesion detection and characterisation in the colon. CAD EYE has been trained with a powerful supercomputer located in Fujifilm’s global AI technology centre in Tokyo, utilising an immense amount of clinical images using Fujifilm endoscopy systems. As a result, CAD EYE is a customised detection and characterisation support compatible with the ELUXEO™ system.

CAD EYE works with the expansion unit EX-1 and the CAD EYE software EW10-EC02 and can store up to 30 hours of video material in its internal memory. It can easily be controlled with the scope switch or directly at the processor.

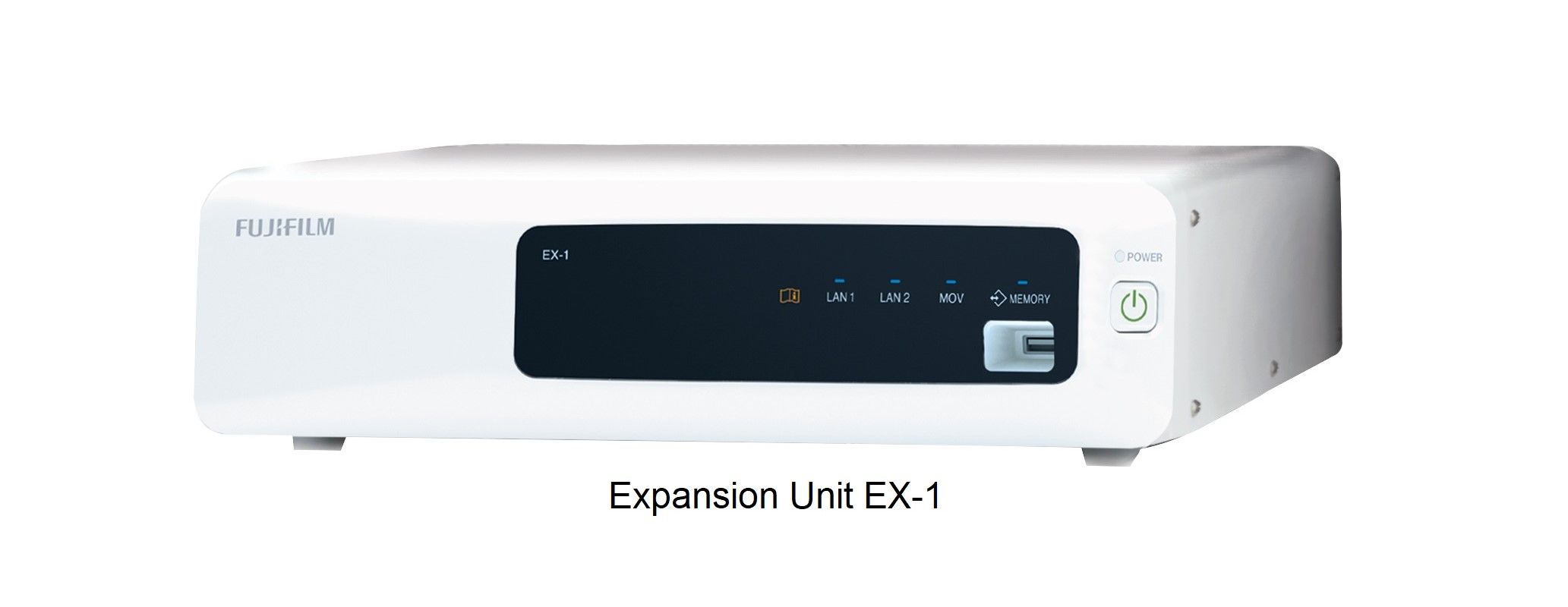

EX-1 Expansion Unit
Compatible Processors VP-7000 / EP-6000
Compatible Scopes 700 Series colonoscopes
Dimensions (W x H x D) 370.0 x 99.0 x 456.6mm
Weight 7.1 kg
Output DVI-I x1, DVI-D x1
Input DVI-I x1
Memory 30 hours of video material, Full-HD, MP4
Software EW10-EC02
Package Content USB flash drive for CADEYE installment, user manual
BROCHURES
FujiFilm Expansion unit - Brochure

FEATURES

Accelerate Innovation

Improving the detection rate of difficult to discover lesions has been one of the major challenges within the field of endoscopy in recent years. Fujifilm has continuously worked on the development of image processing technologies such as Linked Color Imaging (LCI) and Blue Light Imaging (BLI) utilising specific wavelengths of light to support early cancer detection and characterisation. Recently Fujifilm has developed a new technology known as “CAD EYE” to support colonic polyp detection and characterisation during colonoscopy, utilising Fujifilm's medical AI technology named REiLI. CAD EYE is a customised detection and characterisation support compatible with the ELUXEO system.

Cad Eye Supports Detection & Characterisation - Customised for ELUXEO USERS

CAD EYE has been developed utilising AI deep learning technology and is compatible with Fujifilm’s ELUXEO™ endoscopy series to support endoscopic lesion detection and characterisation in the colon. CAD EYE has been trained with a powerful supercomputer located in Fujifilm’s global AI technology centre in Tokyo, utilising an immense amount of clinical images using Fujifilm endoscopy systems. As a result, CAD EYE is a customised detection and characterisation support compatible with the ELUXEO™ system.

SPECIFICATIONS

CAD EYE works with the expansion unit EX-1 and the CAD EYE software EW10-EC02 and can store up to 30 hours of video material in its internal memory. It can easily be controlled with the scope switch or directly at the processor.

EX-1 Expansion Unit
Compatible Processors VP-7000 / EP-6000
Compatible Scopes 700 Series colonoscopes
Dimensions (W x H x D) 370.0 x 99.0 x 456.6mm
Weight 7.1 kg
Output DVI-I x1, DVI-D x1
Input DVI-I x1
Memory 30 hours of video material, Full-HD, MP4
Software EW10-EC02
Package Content USB flash drive for CADEYE installment, user manual
