Optomic OPTIMUS ENT Treatment Unit/Workstation
Brand: Optomic Microscope    Code: OPT67633007
Supplier Code: 67633007

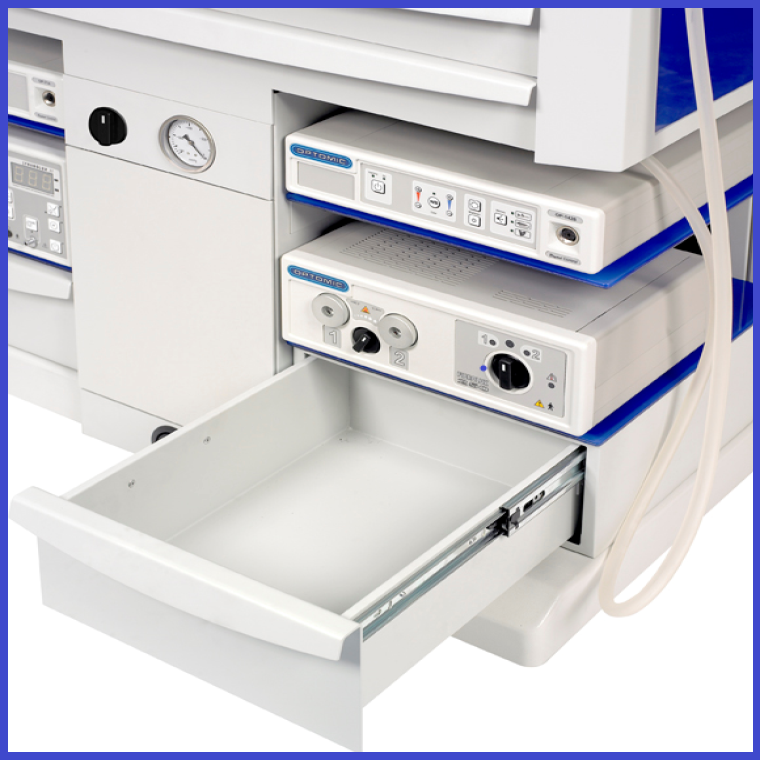

Drawers

Drawer cabinet with 4 spacious drawers and a slide-out work surface. All drawers slide out fully on highly-resistant slides with damper system and automatic final closure.

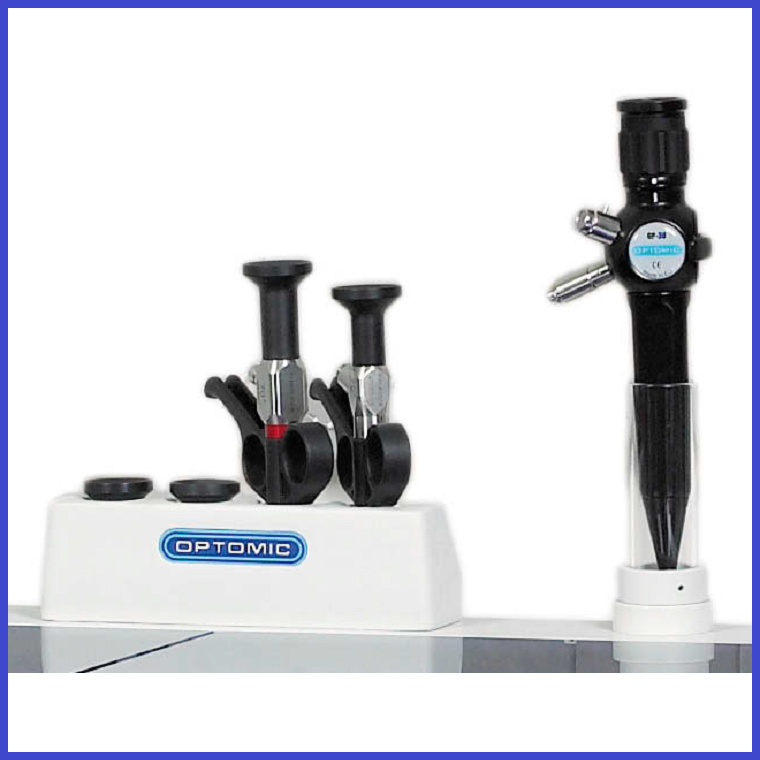

Scope Holder and Heater

Rigid and flexible endoscopes are kept clean and organised in disinfectable internal sheaths. The scope organiser offers maximum utility in the minimum space.

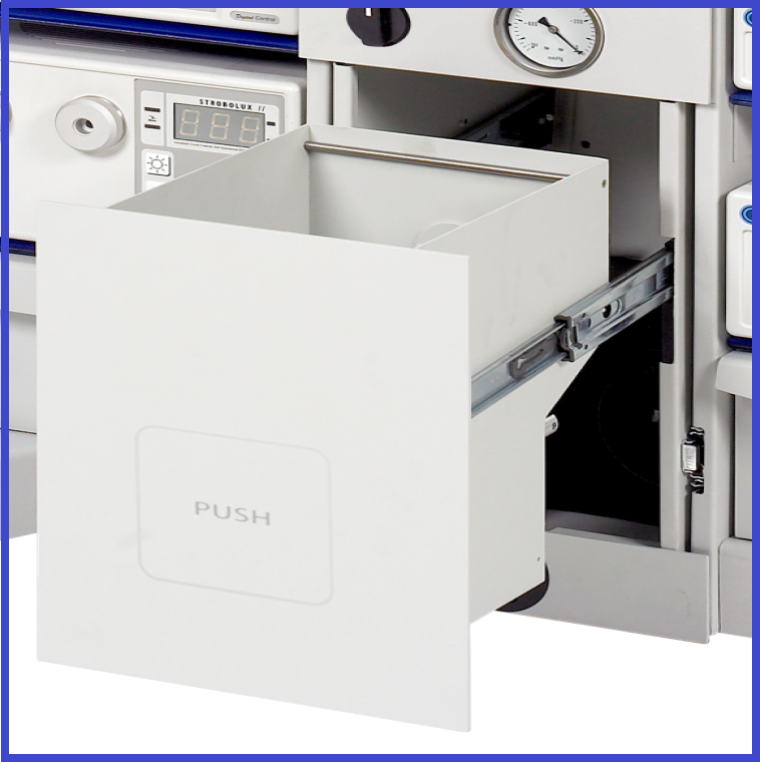

Waste Bin

The waste bin is activated by an electromagnet. At the touch of the button (left or right), the waste bin automatically slides out.

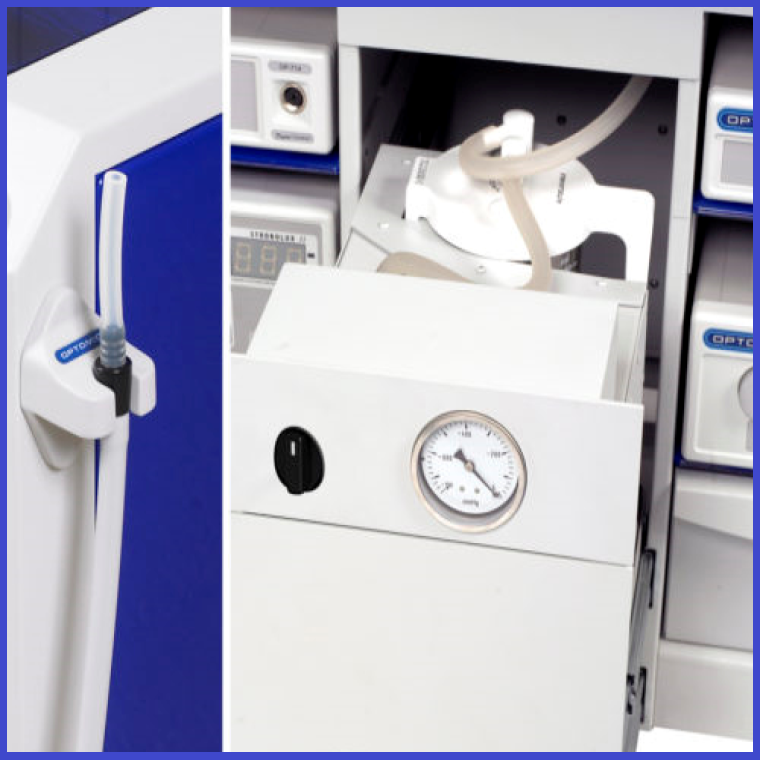

High Power Suction System

The built-in and silent suction system is vibration-free, making it possible to use the microscope and the suction system simultaneously.

The OPTIMUS ENT treatment unit only occupies 0.5 m² of floor space and altogether provides more than 3 m² of usable space, including work surfaces, drawers and shelves. With the addition of an OP-C16 ENT examination microscope (optional), the result is a complete unit that adapts to the most demanding requirements of today’s ENT consulting room.

  • All in one solution.
  • Elegant and smart design.
  • Spacious work-surfaces and drawers.
OPTIMUS SPECIFICATIONS
SUCTION SYSTEM 60 liters/minute, automatic start up
PRESSURE GAUGE AND REGULATOR Gradual regulations
AUTOMATIC WASTE BIN 9 liters
6 drawers
  • 1 of 79 cm x 34 cm, height 4.5 cm
  • 2 x 79 cm x 40 cm, height 5.5 cm
  • 1 x 79 cm x 40 cm, height 8.0 cm
  • 2 x 28 cm x 39 cm, height 12.5 cm
9 WORK SURFACES
  • 1 slide-out tray of 79 cm x 40 cm
  • 2 fold up work tables of 29 cm x 33 cm
  • 2 hinged glass tops of 37 cm x 40 cm
  • 4 glass shelves of 34 cm x 40 cm
ENDOSCOPE HOLDERS 4 rigid and 2 flexible
GLASS COLOURS 6 colours available
MOBILE 4 wheels
WEIGHT WITHOUT ACCESSORIES 195 kg
MAXIMUM CONSUMPTION OF PERIPHERALS 1200 W
MAXIMUM TOTAL CONSUMPTION 1500 W
OPTIONAL ACCESSORIES
  • ENT microscope support
  • Lateral or straight monitor support
  • Head lamp controller
  • Endoscopy camera head and fiber optic cable holder
  • Mirror heater
  • Endoscope heater
  • Isolation transformer: 1500 W 230 V 50/60 Hz
