The new ENDOCAM Logic 4K system from Richard Wolf brings the brilliance of 4K to the operating theatre.
Brand: Richard Wolf GmbH    Code: WO85525942D
Supplier Code: 5525942

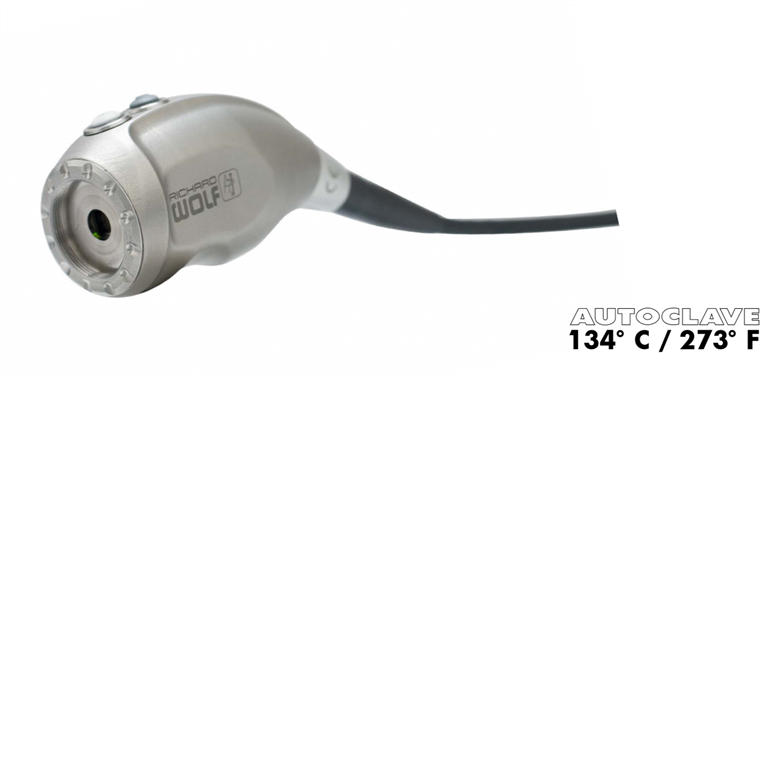

ENDOCAM Logic 4K Camera Head

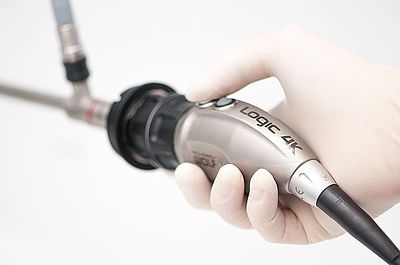

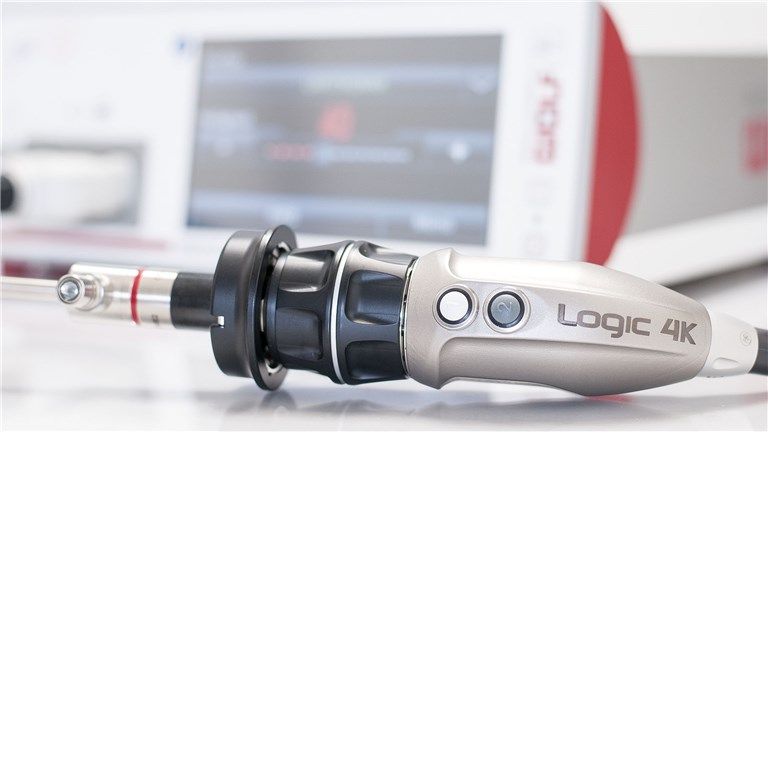

The newly developed ENDOCAM Logic 4K Camera Head generates 4K UHD resolution. This enables the recorded image data to be directly processed without extrapolation. This light weight camera head combined with its ergonomic design helps to reduce hand fatigue making it ideal for endoscopic applications.
  • 4K Resolution generated from 3 x 1/3 inch CMOS image sensors; Aspect ratio 16:9
  • Universal C-mount lens connector
  • 2 freely programmable camera head buttons, each with two functions
  • Autoclavable, disinfectable and gas sterilizable. Suitable for STERRAD NX (reprocessing basket supplied).
TECHNICAL DATA
Sensor 3 x 1/3" CMOS
Operation 2 programmable head buttons with 4 functions
Degree of protection against the ingress of liquids IPX7 (protected against the effects of permanent submersion)
Image Capture 3 Chip Technology
Dimensions (W x H x D) Diameter Width ~40mm, Diameter Height ~48mm, Length ~102mm
Camera Head Weight (without cable) 121 g
Camera Head Weight (with cable & camera plug) 540 g
Cable Length 3.0 m
Cable outlet 30°
Thread for objective lens C-mount
BROCHURES
Logic 4K Camera Head - Brochure
PRODUCT MANUALS
Logic 4K Camera Head - Product Manual

FEATURES

ENDOCAM Logic 4K Camera Head

The newly developed ENDOCAM Logic 4K Camera Head generates 4K UHD resolution. This enables the recorded image data to be directly processed without extrapolation. This light weight camera head combined with its ergonomic design helps to reduce hand fatigue making it ideal for endoscopic applications.
  • 4K Resolution generated from 3 x 1/3 inch CMOS image sensors; Aspect ratio 16:9
  • Universal C-mount lens connector
  • 2 freely programmable camera head buttons, each with two functions
  • Autoclavable, disinfectable and gas sterilizable. Suitable for STERRAD NX (reprocessing basket supplied).

SPECIFICATIONS

TECHNICAL DATA
Sensor 3 x 1/3" CMOS
Operation 2 programmable head buttons with 4 functions
Degree of protection against the ingress of liquids IPX7 (protected against the effects of permanent submersion)
Image Capture 3 Chip Technology
Dimensions (W x H x D) Diameter Width ~40mm, Diameter Height ~48mm, Length ~102mm
Camera Head Weight (without cable) 121 g
Camera Head Weight (with cable & camera plug) 540 g
Cable Length 3.0 m
Cable outlet 30°
Thread for objective lens C-mount
