FujiFilm Flush Knife Ball Tip Slim Type
Product options:

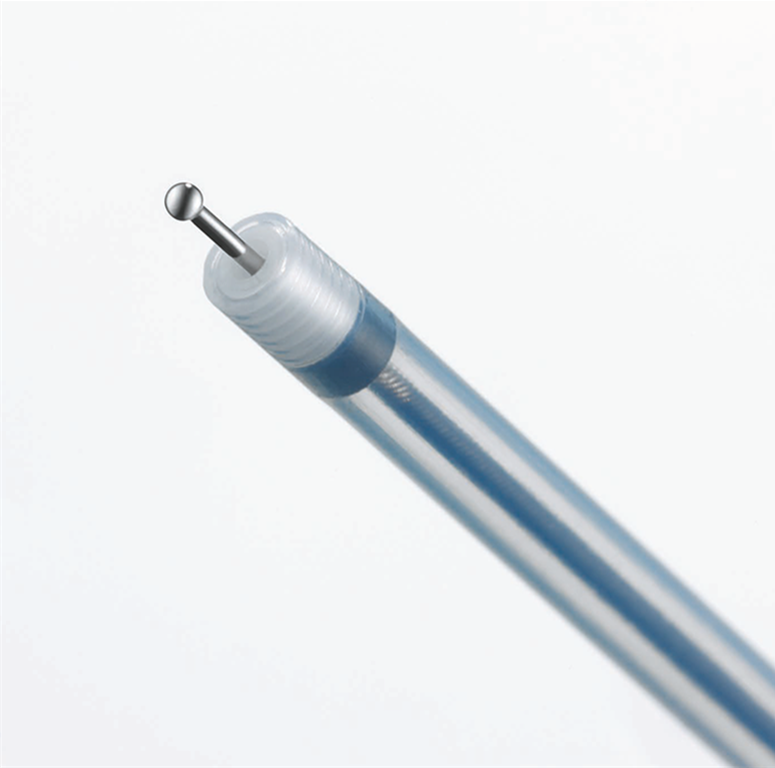

Design of Knife
FlushKnife BT has a ball tip, which produces good traction, enabling the target tissue to be dissected smoothly. The ball tip touches a wider range of tissue and supports effective coagulation.

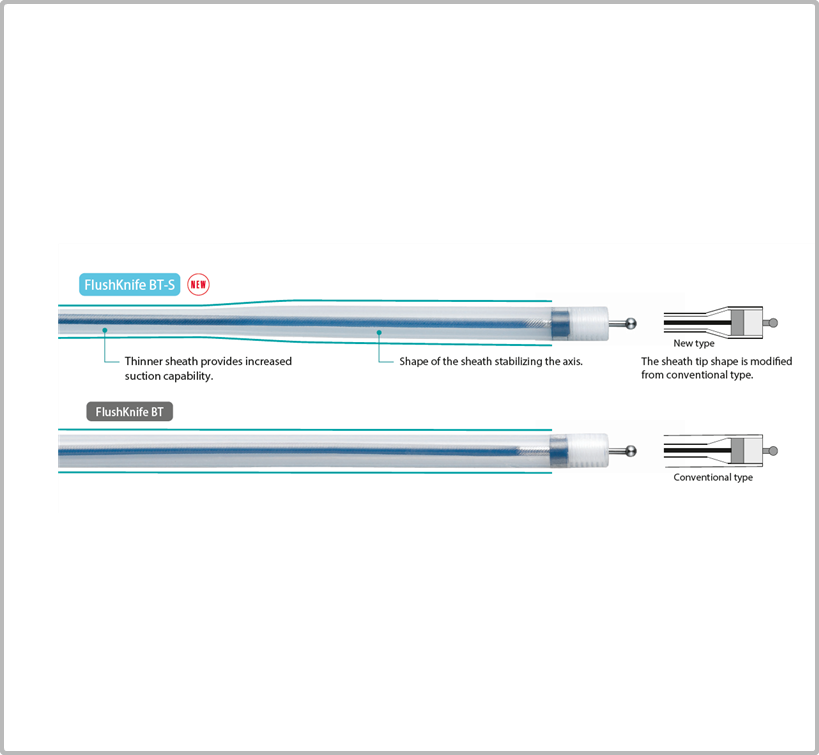

Thinner Sheath
The new design thinner sheath supports more efficient ESD procedures.

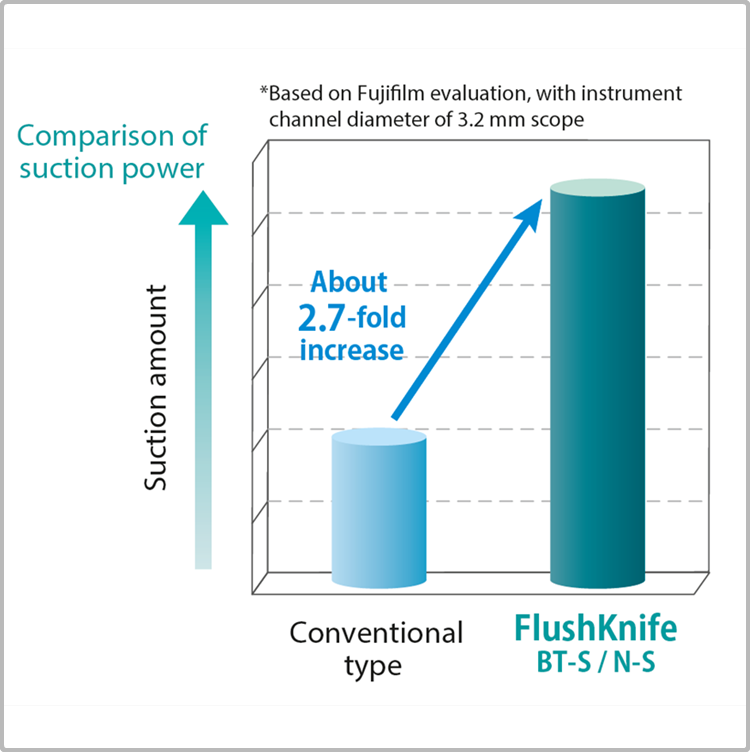

Increased Suction Capability
With thinner sheath, the space between the instrument channel and FlushKnife is enlarged. It enables increased suction performance while stabilizing the sheath.

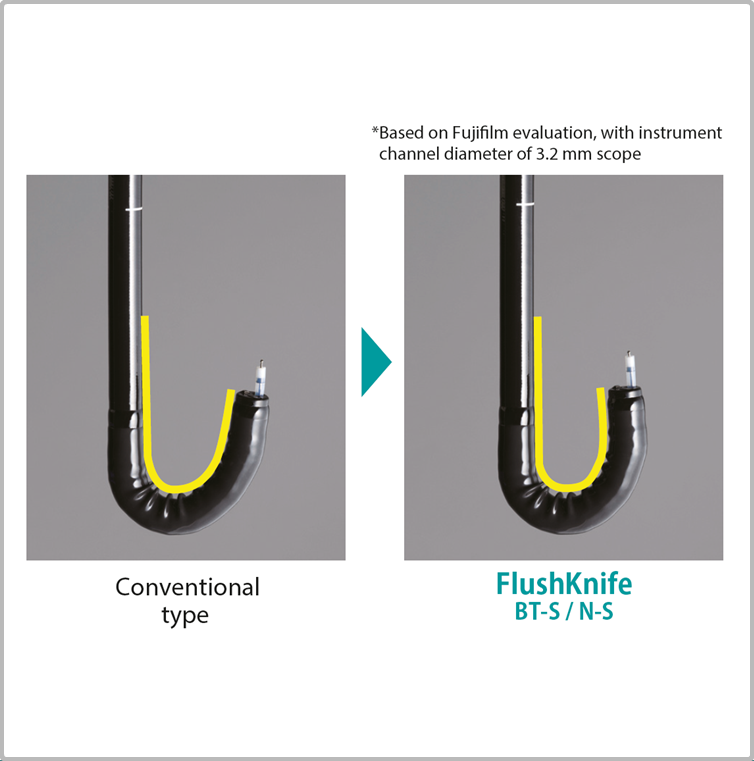

Smaller Bending Radius
By adopting thinner sheath and more flexible material, slim type FlushKnife is capable of bending more acutely.

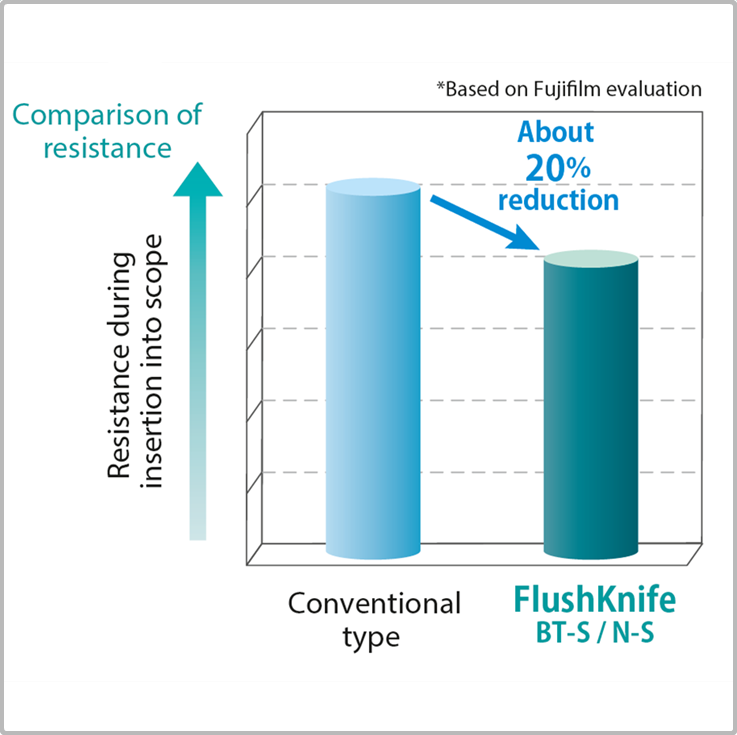

Smoother Scope Insertion
Resistance during scope insertions is reduced by enhanced flexibility and thinner sheath. Less kinking is likely to reduce stress on physicians.

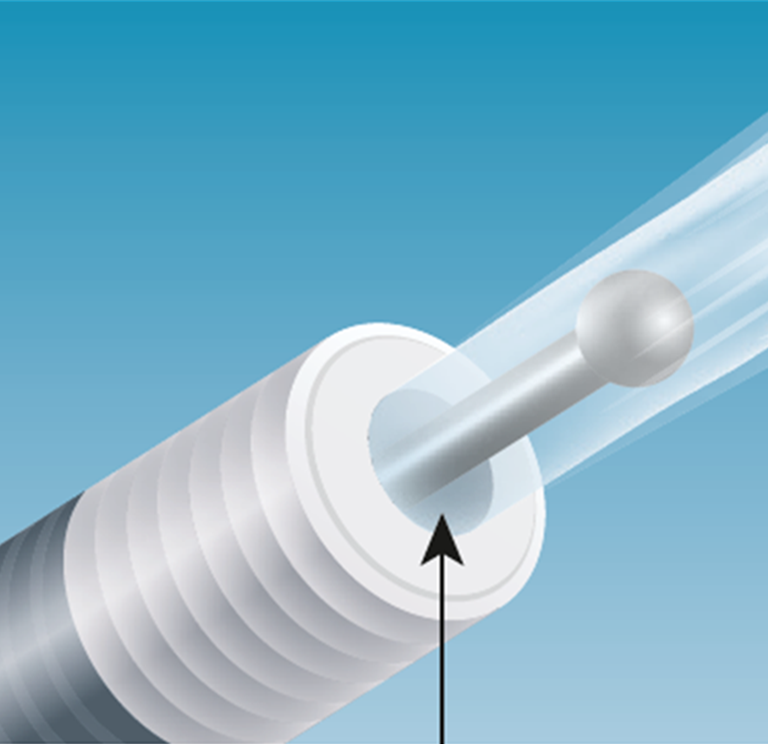

Effective Water Jet Function
Even with thinner sheath, water jet function is same asconventional type, and the knife maintains its sharpness throughout the procedure.
Effective Water Jet Function
Even with thinner sheath, water jet function is same asconventional type, and the knife maintains its sharpness throughout the procedure.
| SPECIFICATIONS | |
|---|---|
| Working Length | 2000 mm |
| Maximum Diameter of Insertion Portion | 2.7 mm |
| Scope Instrument Channel Diam of Compatible Endoscope | 2.8 mm or larger |
| Packaging Unit | 1 item per pack |
| Brochures | |
|---|---|
| 00zFlushKnifeBTS - Brochure |
Brand: FujiFilm |
Code:
DK2620JB20S
Product options:
Brand: FujiFilm |
Code:
DK2620JB20S
At a glance
Disposable high-frequency knife for endoscopic submucosal dissection (ESD) procedures.
Design of KnifeFlushKnife BT has a ball tip, which produces good traction, enabling the target tissue to be dissected smoothly. The ball tip touches a wider range of tissue and supports effective coagulation. |
|
|
|
Thinner SheathThe new design thinner sheath supports more efficient ESD procedures. |
Increased Suction CapabilityWith thinner sheath, the space between the instrument channel and FlushKnife is enlarged. It enables increased suction performance while stabilizing the sheath. |
|
|
|
Smaller Bending RadiusBy adopting thinner sheath and more flexible material, slim type FlushKnife is capable of bending more acutely. |
Smoother Scope InsertionResistance during scope insertions is reduced by enhanced flexibility and thinner sheath. Less kinking is likely to reduce stress on physicians. |
|
|
|
Effective Water Jet FunctionEven with thinner sheath, water jet function is same asconventional type, and the knife maintains its sharpness throughout the procedure. |
Effective Water Jet FunctionEven with thinner sheath, water jet function is same asconventional type, and the knife maintains its sharpness throughout the procedure. |
|
Diathermic Slitter "FlushKnife series"
Endoscopic submucosal dissection (ESD) has been drawing attention as a less invasive treatment for patients. To widen the range of applications, the FlushKnife series has pursued enhanced usability. In addition to increased treatment capability derived from the needs in clinical settings, the FlushKnife series ensures greater safety with its tip design.

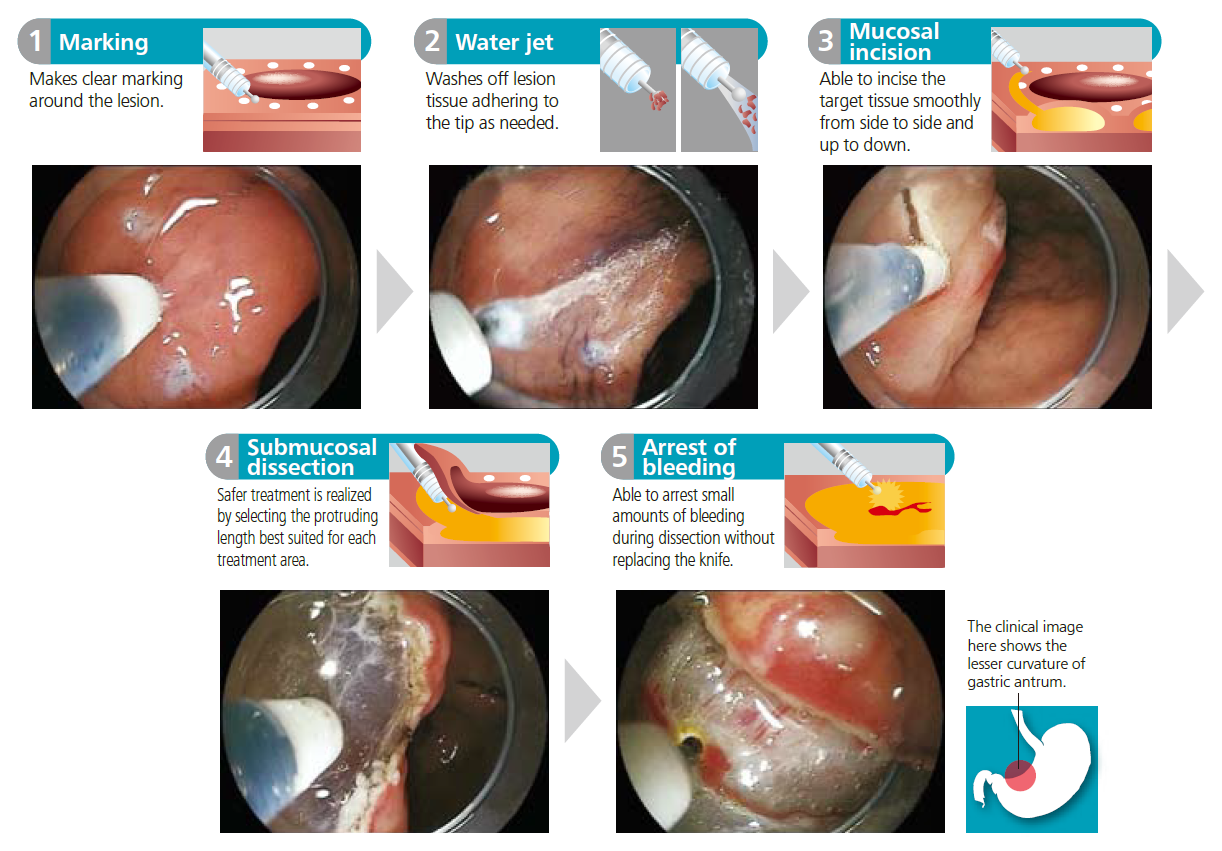

High Versatility
One knife carries out procedures includng marking, incision, dissection and arrest of bleeding, and no replacement is necessary. The high versatility improves operation and cost efficiencies.
