Clutch Cutter scissors 3.5mm Colon/Esophagus

Clutch Cutter scissors 3.5mm Colon/Esophagus

CHOOSE OPTIONS...
PRODUCT ENQUIRY
Rotatable alligator scissor forceps to perform more efficient and safer Endoscopic Submucosal Dissection (ESD).
Brand: FujiFilm    Code: DP2618DT-35
APN: 14547410324072    Supplier Code: DP2618DT-35

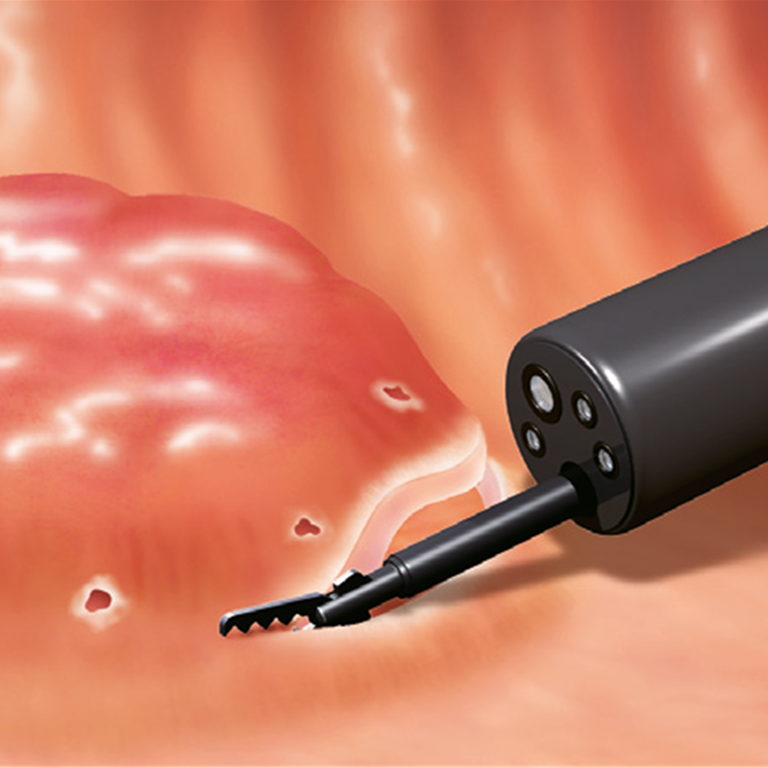

Incision

Grip the mucous membrane by using the toothed jaws, lift up and start with the incision.

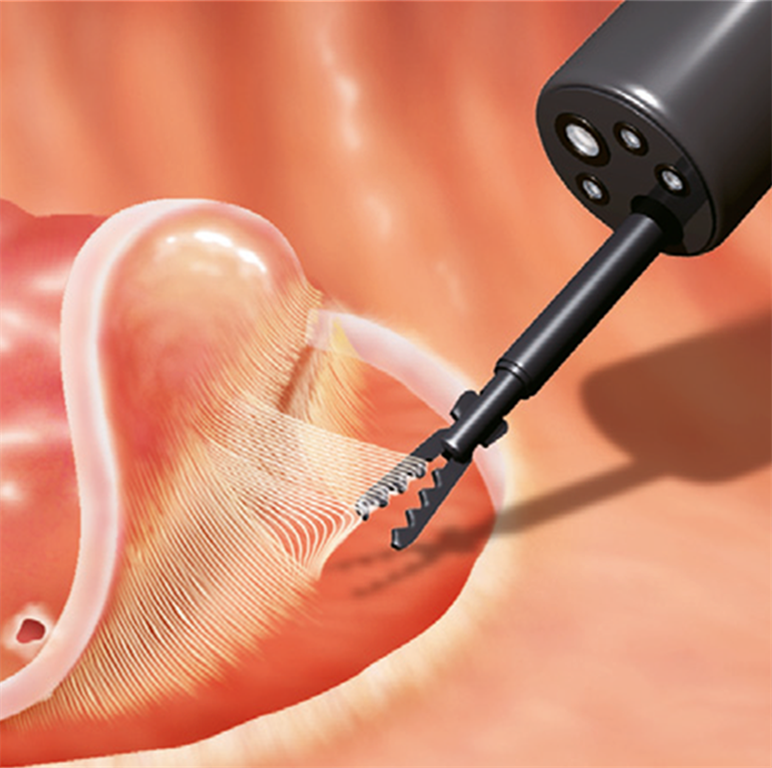

Dissection

Grip and lift up the submucosa, look to confirm and dissect.

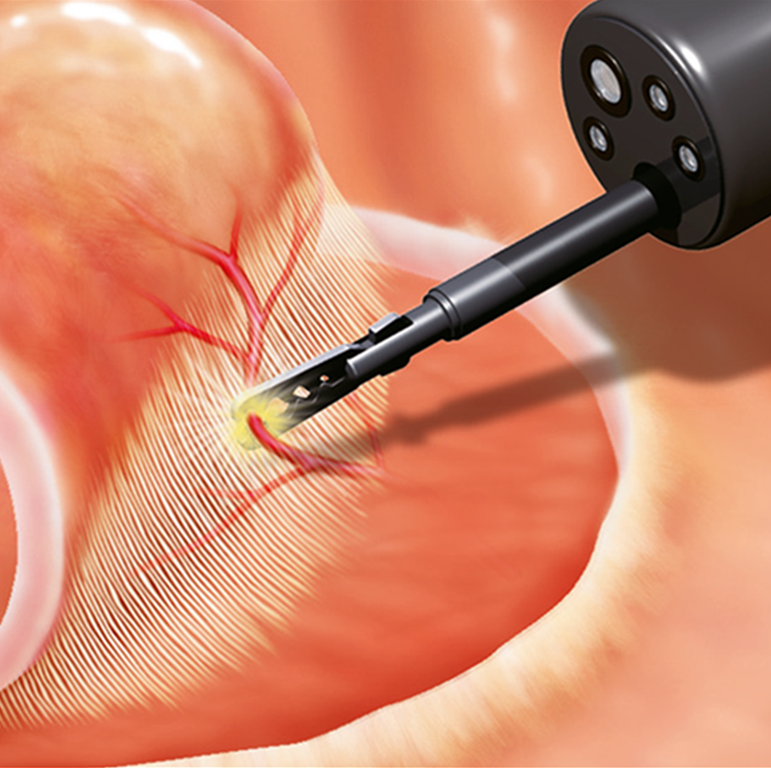

Coagulation

An efficient coagulation of bleeding spots is possible by using the high frequency jaws.

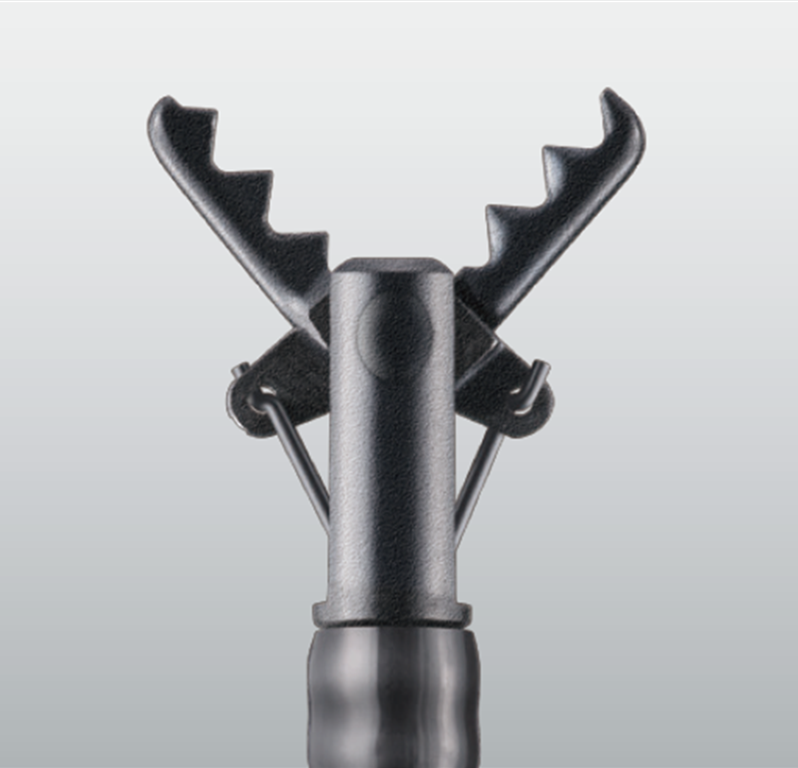

Clutch Cutter Key Features

A three-in-one device, Clutch Cutter is a rotatable forceps that supports clinicians in making incisions, dissections and coagulation. Built for the most rigorous procedures, Clutch Cutter features jagged, serrated jaws for enhanced clutching ability and an insulated outer edge for maximum durability. The device offers a working length of 1800mm and a 2.7mm maximum diameter of insertion portion. ClutchCutter is available in two jaw lengths — 3.5mm and 5.0mm.

  • Serrated Jaws - to securely grip the mucous membrane
  • Insulated Outer Edge - to minimise the risk of damaging tissue
  • Safety - the tip is designed to enhance safety and treatment capability
  • Rotating Jaws - to approach the lesion at a more precise angle
SPECIFICATIONS
Item Identifier DP2618DT-35
Jaw Length 3.5 mm
Working Length 1800 mm
Max Outside Diameter of Insertion Portion 2.7 mm
Scope Instrument Channel Diam of Compatible Endoscope 2.8 mm or larger
Scope Working Length 1400 mm or less
Electrosurgical Unit Compatibility ERBE VIO 300 D, ERBE ICC 200
BROCHURES
Clutch Cutter scissors 3.5mm Colon/Esophagus - Brochure
