The EN-580T is a double-balloon endoscope suitable for both observation and treatment.
Brand: FujiFilm    Code: EN580T
APN: 14547410335245    Supplier Code: EN580T

Double Ballon Endoscopy

The latest Fujifilm Therapeutic Double Balloon endoscope (EN-580T) is a superior imaging double balloon endoscope that unlocks the challenges of the small bowel – and beyond. The EN-580T further expands Fujifilm’s already pioneering “gold-standard” when it comes to diagnosis and treatment in the small bowel. Featuring a range of innovations, it meets user’s needs for more accurate and efficient examinations and treatment:

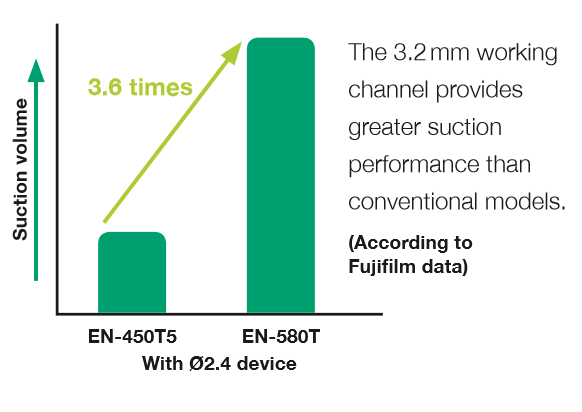

Large Suction Channel

The 3.2mm diameter working channel suits various procedures like haemostasis and balloon dilation, providing greater suction performance than that of conventional models. As it enables blood or mucus to be aspirated while a therapeutic device is inserted, quicker haemostasis is possible. The large working channel allows an easier insertion and removal of the balloon catheter before and after dilatation of structures.

  • Superior image quality in close focus for more detailed diagnosis.
  • Newly designed one-touch connector and relocated balloon air feed inlet for better operability.
  • GENERAL
    Field of View 140°
    Viewing direction 0° (Forward)
    Observation Range 2~100mm
    Bending capability
    • UP: 180° DOWN: 180°
    • RIGHT: 160° LEFT: 160°
    Working length 2,000 mm
    Total length 2,300 mm
    Distal end diameter 9.4 mm
    Flexible portion diameter 9.3 mm
    Minimum instrument channel diameter 3.2 mm
    BROCHURES
    Fujifilm High Resolution Double Balloon Enteroscope - Brochure
    PRODUCT MANUALS
    Fujifilm High Resolution Double Balloon Enteroscope - Product Manual

    FEATURES

    Double Ballon Endoscopy

    The latest Fujifilm Therapeutic Double Balloon endoscope (EN-580T) is a superior imaging double balloon endoscope that unlocks the challenges of the small bowel – and beyond. The EN-580T further expands Fujifilm’s already pioneering “gold-standard” when it comes to diagnosis and treatment in the small bowel. Featuring a range of innovations, it meets user’s needs for more accurate and efficient examinations and treatment:

    Large Suction Channel

    The 3.2mm diameter working channel suits various procedures like haemostasis and balloon dilation, providing greater suction performance than that of conventional models. As it enables blood or mucus to be aspirated while a therapeutic device is inserted, quicker haemostasis is possible. The large working channel allows an easier insertion and removal of the balloon catheter before and after dilatation of structures.

  • Superior image quality in close focus for more detailed diagnosis.
  • Newly designed one-touch connector and relocated balloon air feed inlet for better operability.
  • SPECIFICATIONS

    GENERAL
    Field of View 140°
    Viewing direction 0° (Forward)
    Observation Range 2~100mm
    Bending capability
    • UP: 180° DOWN: 180°
    • RIGHT: 160° LEFT: 160°
    Working length 2,000 mm
    Total length 2,300 mm
    Distal end diameter 9.4 mm
    Flexible portion diameter 9.3 mm
    Minimum instrument channel diameter 3.2 mm
