OPTOMIC OP-S7 ENT CHAIR

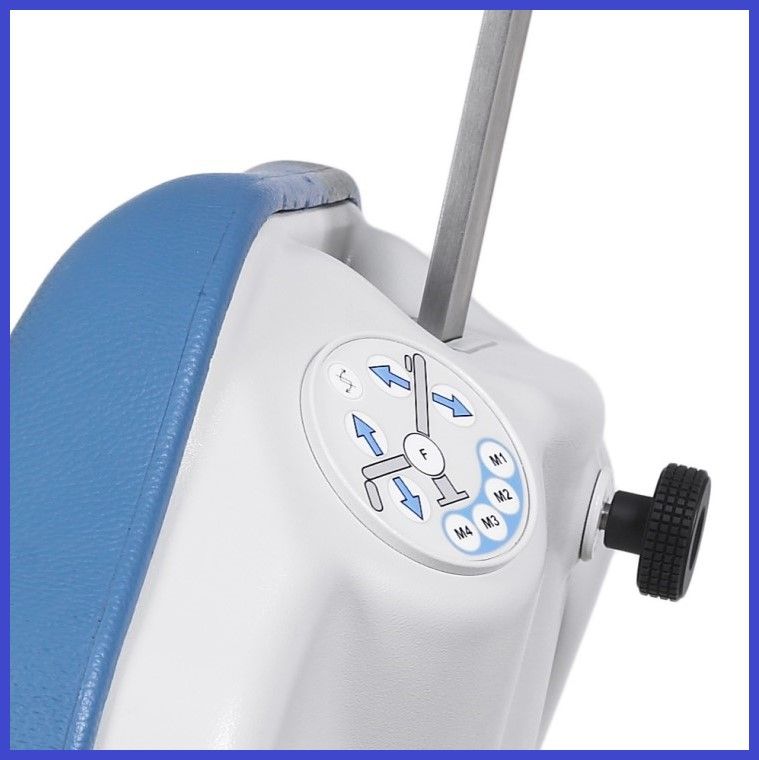

User Controls
Two soft touch keypads permit easy handling of the ENT chair. The keypads operate both the up/down movement and the inclination of the backrest. The keypads have four memories for the user to customize.

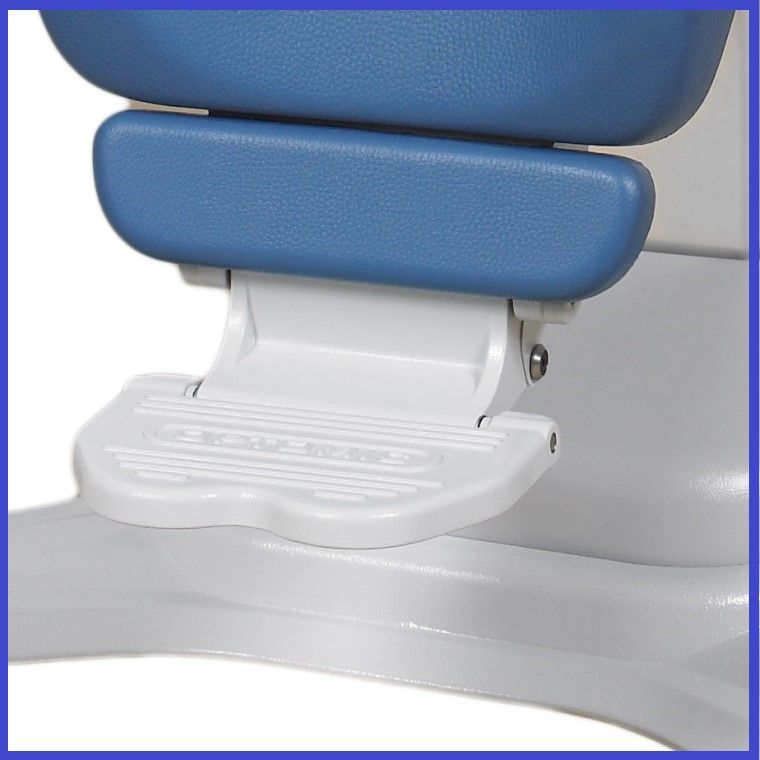

Footrest
The strong metallic footrest is equipped with an automatic fold-down mechanism.
| OP-S7 SPECIFICATIONS | ||
|---|---|---|
| UP/DOWN MOVMENT | Electrical | |
| BACKREST AND LEGREST MOVEMENT | Electrical | |
| PROGRAMMABLE MEMORIES | 7 memories (6 programmable + Trendelenburg) | |
| MOVEMENT CONTROL | 2 keypads on the backrest + Foot-operated joystick | |
| UPHOLSTERY | PUR melting, no seams, latex free, washable | |
| FIRE PROOF CLASS | Fire proof NoUL94HB | |
| FOOTREST | Metallic with automatic fold-down | |
| ARMRESTS | Folding armrests | |
| HEADREST | Adjustable headrest, variable height and inclination. Removable | |
| CHAIR ROTATION | 380 degrees (190 degrees right / 190 degrees left) | |
| TRENDELENBURG POSITION | -10 degree inclination | |
| BACKREST ANGLE | From 80 degrees to 190 degrees | |
| SEATING HEIGHT | Max 900mm - Min 550mm | |
| MAINS CONNECTION | 110/240V - 50/60 Hz | |
| DIMENSIONS (BETWEEN BASE TRIMS) | 610mm (w) x 730mm (h) | |
| MAXIMUM LOAD | 150kg | |
Brand: Optomic Microscope |
Code: OPT68243128
APN: 9319499261375 |
Supplier Code: 68243128
Supplier Description: OP-S7 ENT CHAIR
Brand: Optomic Microscope |
Code: OPT68243128
APN: 9319499261375 |
Supplier Code: 68243128
Supplier Description: OP-S7 ENT CHAIR
At a glance
Optomic OP-S7 Patient Examination Chair
User ControlsTwo soft touch keypads permit easy handling of the ENT chair. The keypads operate both the up/down movement and the inclination of the backrest. The keypads have four memories for the user to customize.
|
|
|
|
FootrestThe strong metallic footrest is equipped with an automatic fold-down mechanism.
|
The OPTIMIC OP-S7 patient examination chair was designed by ENT specialists for ENT specialists. Sturdiness and smooth movements combine in the chair to achieve a high performance product. The geometry of the chair's structure adapts to achieve the optimumu distance between the patient and the doctor in every step of the examination and the treatment.
- Sturdiness and Stability.
- Elegant and smart design.
- Strong folding armrests, backrest and legrest movement.
