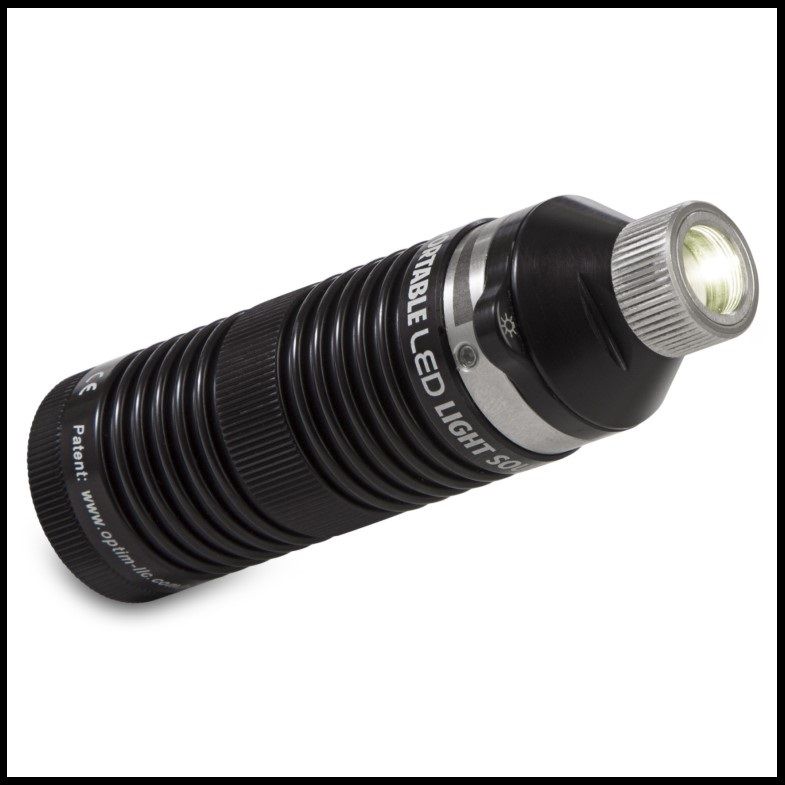

Optim Portable Light Source (PLS)
Portability and Compatibility

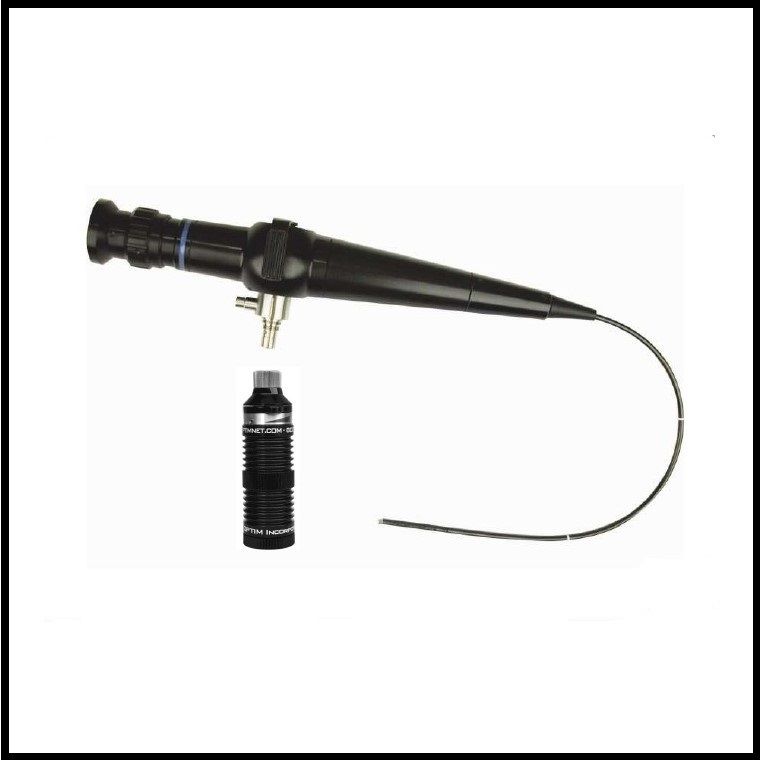

Connects directly to your flexible or rigid endoscope, eliminating cumbersome cords. Compatible with threaded post design endoscopes.

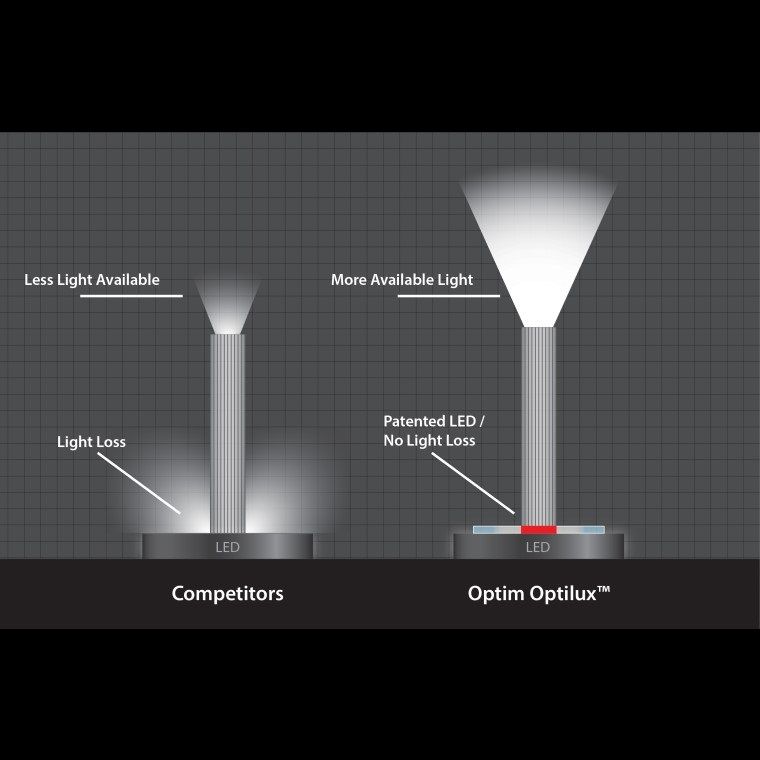

Optilux
Optim's unique LED light source to fiber light guide coupling technology, Optilux, brings unmatched illumination to the end of the scope, where it counts.
Compact, Simple Design
Optim’s patented optical coupling technology focuses and shapes the light, delivering more unparalleled brightness for clinical use.
| OPTIM PLS SPECIFICATIONS | |
|---|---|
| Body Diameter | 27mm (1.06 inches) |
| Overall Length | 90mm (3.54 inches) |
| Weight (with battery) | 90g (3.2 oz) |
| Lumens | 200 lm |
| Battery Type | Lithium Ion, 3.6V, 700mAHr |
| Battery Charge Time | 2 Hours |
| Battery Life at Full Power | 45 minutes |
| Battery Charge Recycles | 500+ Recharges |
| Light Source Operation | Variable Light Intensity |
| ROHS Compliant | Yes |
| Brochures | |
|---|---|
| PLS-KIT - Brochure | Product Manuals |
| Optim Portable Light Source (PLS) - Product Manual |
Brand: Xion Medical |
Code: PLS-KIT
APN: 9319499055042 |
Supplier Code: PLS KIT
Brand: Xion Medical |
Code: PLS-KIT
APN: 9319499055042 |
Supplier Code: PLS KIT
At a glance
OPTIM portable LED light source for ENT rigid and flexible scopes.
Portability and CompatibilityConnects directly to your flexible or rigid endoscope, eliminating cumbersome cords. Compatible with threaded post design endoscopes.
|
|
|
|
OptiluxOptim's unique LED light source to fiber light guide coupling technology, Optilux, brings unmatched illumination to the end of the scope, where it counts.
|
Compact, Simple DesignOptim’s patented optical coupling technology focuses and shapes the light, delivering more unparalleled brightness for clinical use. |
|
Patented, powerful LED illumination providing ENT physicians with portability and brightness.
- The Optim Portable LED Light Source (PLS) transforms your rigid sinuscope or flexible endoscope by delivering exceptional light intensity and quality in a compact unit.
- The PLS delivers exceptional light intensity and quality in a compact unit that eliminates the need for external light sources, cables and lamp replacement so you can go anywhere the exam is needed.
