OPTIM portable LED light source for ENT rigid and flexible scopes.
Brand: Xion Medical    Code: PLS-KIT
APN: 9319499055042    Supplier Code: PLS KIT

Portability and Compatibility

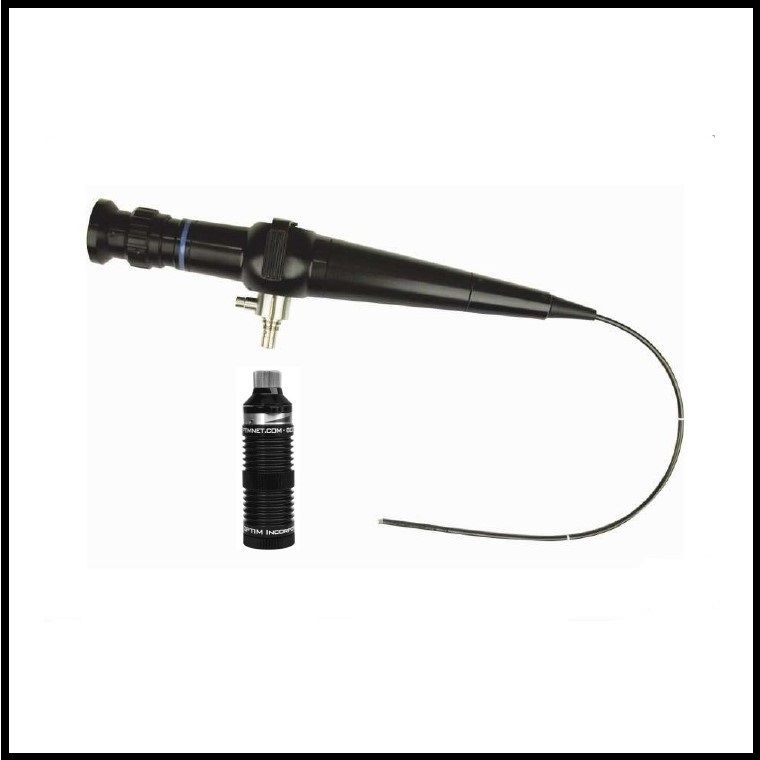

Connects directly to your flexible or rigid endoscope, eliminating cumbersome cords. Compatible with threaded post design endoscopes.

Optilux

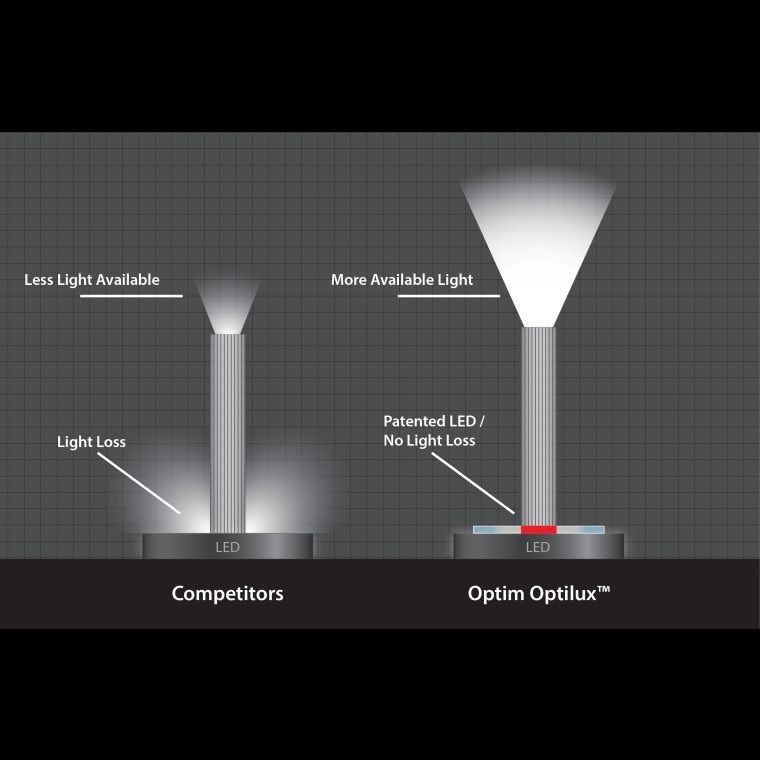

Optim's unique LED light source to fiber light guide coupling technology, Optilux, brings unmatched illumination to the end of the scope, where it counts.

Compact, Simple Design

Optim’s patented optical coupling technology focuses and shapes the light, delivering more unparalleled brightness for clinical use.

Patented, powerful LED illumination providing ENT physicians with portability and brightness.

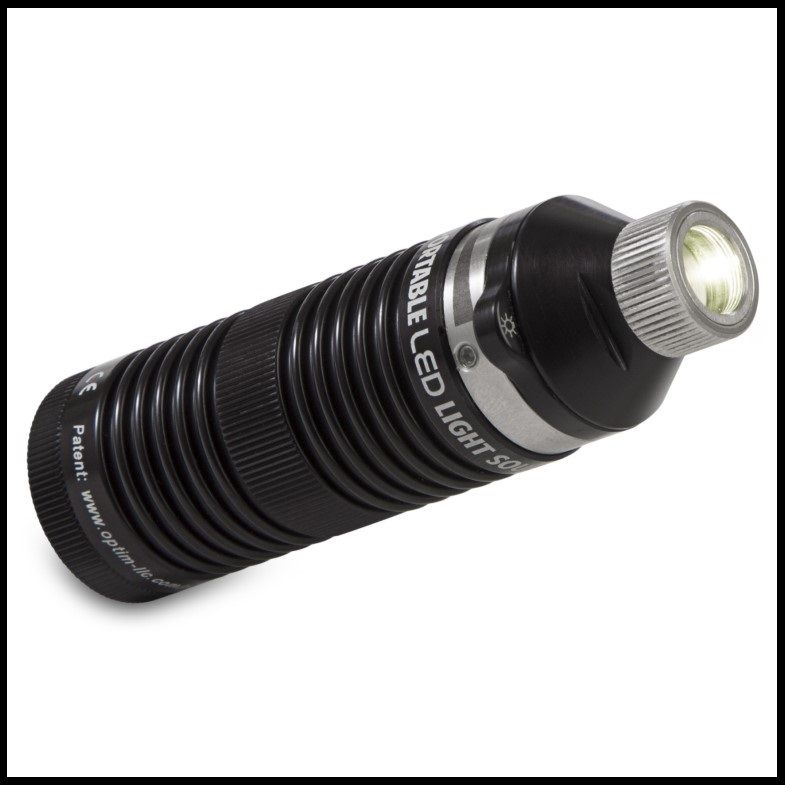

  • The Optim Portable LED Light Source (PLS) transforms your rigid sinuscope or flexible endoscope by delivering exceptional light intensity and quality in a compact unit.
  • The PLS delivers exceptional light intensity and quality in a compact unit that eliminates the need for external light sources, cables and lamp replacement so you can go anywhere the exam is needed.
OPTIM PLS SPECIFICATIONS
Body Diameter 27mm (1.06 inches)
Overall Length 90mm (3.54 inches)
Weight (with battery) 90g (3.2 oz)
Lumens 200 lm
Battery Type Lithium Ion, 3.6V, 700mAHr
Battery Charge Time 2 Hours
Battery Life at Full Power 45 minutes
Battery Charge Recycles 500+ Recharges
Light Source Operation Variable Light Intensity
ROHS Compliant Yes
BROCHURES
Optim Portable Light Source (PLS) - Brochure
PRODUCT MANUALS
Optim Portable Light Source (PLS) - Product Manual

OVERVIEW

Portability and Compatibility

Connects directly to your flexible or rigid endoscope, eliminating cumbersome cords. Compatible with threaded post design endoscopes.

Optilux

Optim's unique LED light source to fiber light guide coupling technology, Optilux, brings unmatched illumination to the end of the scope, where it counts.

Compact, Simple Design

Optim’s patented optical coupling technology focuses and shapes the light, delivering more unparalleled brightness for clinical use.

FEATURES

Patented, powerful LED illumination providing ENT physicians with portability and brightness.

  • The Optim Portable LED Light Source (PLS) transforms your rigid sinuscope or flexible endoscope by delivering exceptional light intensity and quality in a compact unit.
  • The PLS delivers exceptional light intensity and quality in a compact unit that eliminates the need for external light sources, cables and lamp replacement so you can go anywhere the exam is needed.

SPECIFICATIONS

OPTIM PLS SPECIFICATIONS
Body Diameter 27mm (1.06 inches)
Overall Length 90mm (3.54 inches)
Weight (with battery) 90g (3.2 oz)
Lumens 200 lm
Battery Type Lithium Ion, 3.6V, 700mAHr
Battery Charge Time 2 Hours
Battery Life at Full Power 45 minutes
Battery Charge Recycles 500+ Recharges
Light Source Operation Variable Light Intensity
ROHS Compliant Yes
