Fujifilm ELUXEO 7000 LED Light Source

Fujifilm ELUXEO 7000 LED Light Source

PRODUCT ENQUIRY+

The eco-friendly ELUXEO™ 7000 system features the innovative 4-LED Multi Light™ source which offers longevity and low energy consumption.
Brand: FujiFilm   |    Code: BL7000
APN: 9319499012175   |    Supplier Code: BL7000 Supplier Description: Fujifilm 7000 Light Source

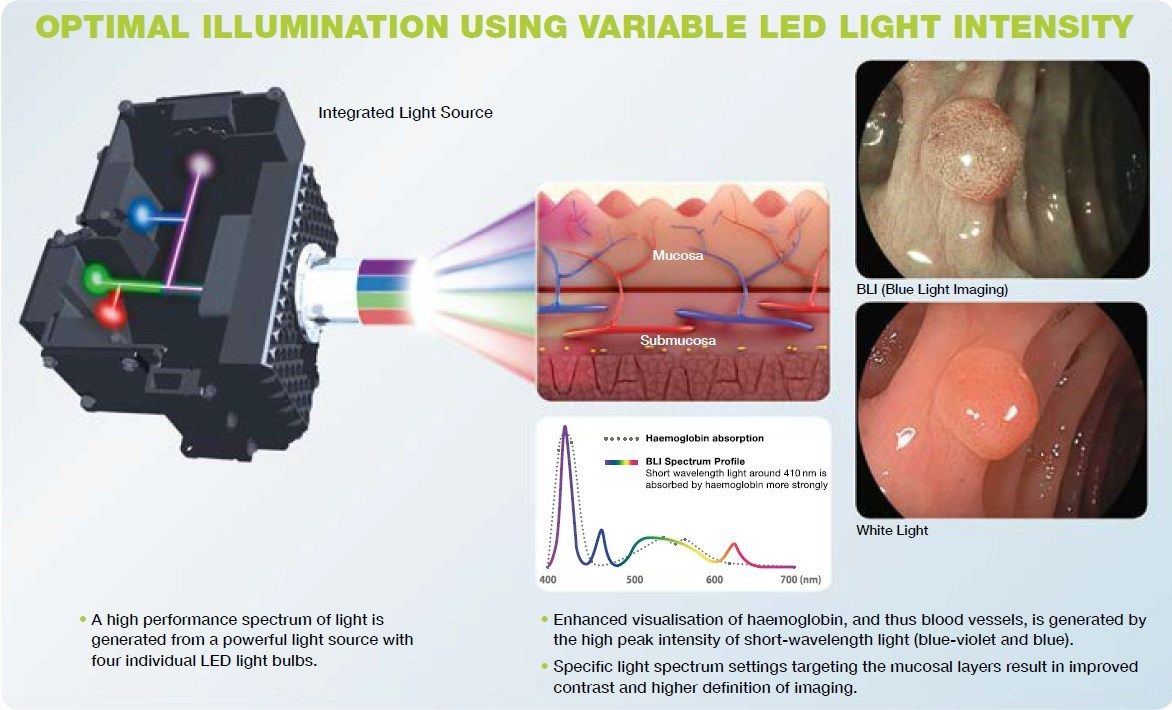

Multi Light Technology

This new high performance 4-LED Multi Light™ technology illumination system is the latest innovation in Fujifilm’s medical device portfolio. Optimal illumination using variable LED light intensity for highest standards in brightness and contrast.

BLI Technology

The combination of special light wavelengths results in improved and accurate contrast imaging, allowing superior visualisation of superficial vascular and mucosal patterns. Focussing on the characteristics of short wavelength absorption of haemoglobin (at 410 nm) combined with specific White Light spectral colours results in improved and accurate contrast imaging.

LCI Technology

LCI differentiates the red colour spectrum more effectively than White Light imaging thanks to its optimal pre-process composition of light spectrum and advanced signal processing. Increased contrast in the red colour leads to improved detection of inflammation and accurate delineation of lesions.

For Better Diagnosis

Multi Light™ Technology

This technology enables creation of images suitable for intended purposes through image processing combined with accurate control of intensity ratio between multiple lights. The 7000 system employs four types of high-intensity LEDs: Blue LED creating short wavelength light and Red/Green/Blue LEDs combined into white light. Multi Light™ technology performs signal processing for images obtained by white light and short wavelength observation modes to produce LCI (Linked Colour Imaging) and BLI (Blue Light Imaging) images. With the involvement of numerous clinical experts, the ideal composition of four LEDs for each observation mode has been developed to achieve the optimal results in illumination. With a simple push of a button, you can easity switch between the observation modes.

This new high performance illumination system is the latest innovation in Fujifilm’s medical device portfolio, and ensures that the quality of imaging meets the highest standards in brightness and contrast providing the innovative observation modes LCI and BLI. Specifically designed for the new illumination system, the ELUXEO™ 700 series of endoscopes featuring Multi Zoom and Freeze function allow for greater differentiation and provide detailed high-resolution imaging for both diagnosis and pre-therapeutic assessment.

GENERAL
Power Rating Voltage - 100V to 240V ~ +/- 10%; Frequency - 50/60Hz; Current Consumption - 1.2-0.7A
Dimensions (W x H x D) 390 x 155 x 485mm (including projection)
Weight 12Kg
Illumination
  • Illumination Source - LED, 300W Xenon lamp intensity
  • Durability of LED - 6 years (based on FUJIFILM criteria)
  • Lighting System - Switching Regulator
  • Light Control Method - LED AUTO Power Control
  • Light Cooling Method - Forced Air Cooling
  • Special Light Observation Mode - BLI, BLI-bright, LCI
  • Maximum Air Supply Pressure - 65kPa
Automatic Brightness Adjustment Brightness is automatically adjusted according to the video output (manually possible).
Air Supply Air Supply Pump - Diaphragm method pump (HI/MID/LOW/OFF)
Water Supply Feeds water by pressurizing the detachable water container with air.
Indicators on front panel
  • Transmitted Illumination - The light flashes with the maximum intensity. Used to check the position of the distal end from outside the body
  • Light Illumination - To avoid the blood of a bleeding patient becoming clotted by the illuminating light. Used to limit the maximum light intensity.
  • Illumination Mode - OFF/1/2/3. Observation modes can be switched by pressing the illumination mode button.
Memory of set value Set values are maintained even after turning off the system.
Category of medical electric equipment
  • Type of protection against electric shock - Class I equipment
  • Degree of protection against electric shock - Type BF applied part
  • Degree of explosion protection - Prohibited in oxygen-rich environment/flammable gas atmosphere.
This product has yet to be reviewed

To be the first to review this product simply fill out the form to the left and let us know how you feel about this product!


To estimate the freight on this item simply enter the destination postcode and the desired quantity and click the "estimate" button.

OVERVIEW

Multi Light Technology

This new high performance 4-LED Multi Light™ technology illumination system is the latest innovation in Fujifilm’s medical device portfolio. Optimal illumination using variable LED light intensity for highest standards in brightness and contrast.

BLI Technology

The combination of special light wavelengths results in improved and accurate contrast imaging, allowing superior visualisation of superficial vascular and mucosal patterns. Focussing on the characteristics of short wavelength absorption of haemoglobin (at 410 nm) combined with specific White Light spectral colours results in improved and accurate contrast imaging.

LCI Technology

LCI differentiates the red colour spectrum more effectively than White Light imaging thanks to its optimal pre-process composition of light spectrum and advanced signal processing. Increased contrast in the red colour leads to improved detection of inflammation and accurate delineation of lesions.

FEATURES

For Better Diagnosis

Multi Light™ Technology

This technology enables creation of images suitable for intended purposes through image processing combined with accurate control of intensity ratio between multiple lights. The 7000 system employs four types of high-intensity LEDs: Blue LED creating short wavelength light and Red/Green/Blue LEDs combined into white light. Multi Light™ technology performs signal processing for images obtained by white light and short wavelength observation modes to produce LCI (Linked Colour Imaging) and BLI (Blue Light Imaging) images. With the involvement of numerous clinical experts, the ideal composition of four LEDs for each observation mode has been developed to achieve the optimal results in illumination. With a simple push of a button, you can easity switch between the observation modes.

This new high performance illumination system is the latest innovation in Fujifilm’s medical device portfolio, and ensures that the quality of imaging meets the highest standards in brightness and contrast providing the innovative observation modes LCI and BLI. Specifically designed for the new illumination system, the ELUXEO™ 700 series of endoscopes featuring Multi Zoom and Freeze function allow for greater differentiation and provide detailed high-resolution imaging for both diagnosis and pre-therapeutic assessment.

SPECIFICATIONS

GENERAL
Power Rating Voltage - 100V to 240V ~ +/- 10%; Frequency - 50/60Hz; Current Consumption - 1.2-0.7A
Dimensions (W x H x D) 390 x 155 x 485mm (including projection)
Weight 12Kg
Illumination
  • Illumination Source - LED, 300W Xenon lamp intensity
  • Durability of LED - 6 years (based on FUJIFILM criteria)
  • Lighting System - Switching Regulator
  • Light Control Method - LED AUTO Power Control
  • Light Cooling Method - Forced Air Cooling
  • Special Light Observation Mode - BLI, BLI-bright, LCI
  • Maximum Air Supply Pressure - 65kPa
Automatic Brightness Adjustment Brightness is automatically adjusted according to the video output (manually possible).
Air Supply Air Supply Pump - Diaphragm method pump (HI/MID/LOW/OFF)
Water Supply Feeds water by pressurizing the detachable water container with air.
Indicators on front panel
  • Transmitted Illumination - The light flashes with the maximum intensity. Used to check the position of the distal end from outside the body
  • Light Illumination - To avoid the blood of a bleeding patient becoming clotted by the illuminating light. Used to limit the maximum light intensity.
  • Illumination Mode - OFF/1/2/3. Observation modes can be switched by pressing the illumination mode button.
Memory of set value Set values are maintained even after turning off the system.
Category of medical electric equipment
  • Type of protection against electric shock - Class I equipment
  • Degree of protection against electric shock - Type BF applied part
  • Degree of explosion protection - Prohibited in oxygen-rich environment/flammable gas atmosphere.
