CMOS TechnologyHigh-resolution and smooth moving image quality is achieved with the CMOS-supported 60 frame progressive scanning technology. The result is smooth moving images with dramatically reduced blurring. The signal is digitally transmitted through the device, reducing susceptibility to outside noise and providing outstanding high-resolution image quality.
|
![]() |
![]() |

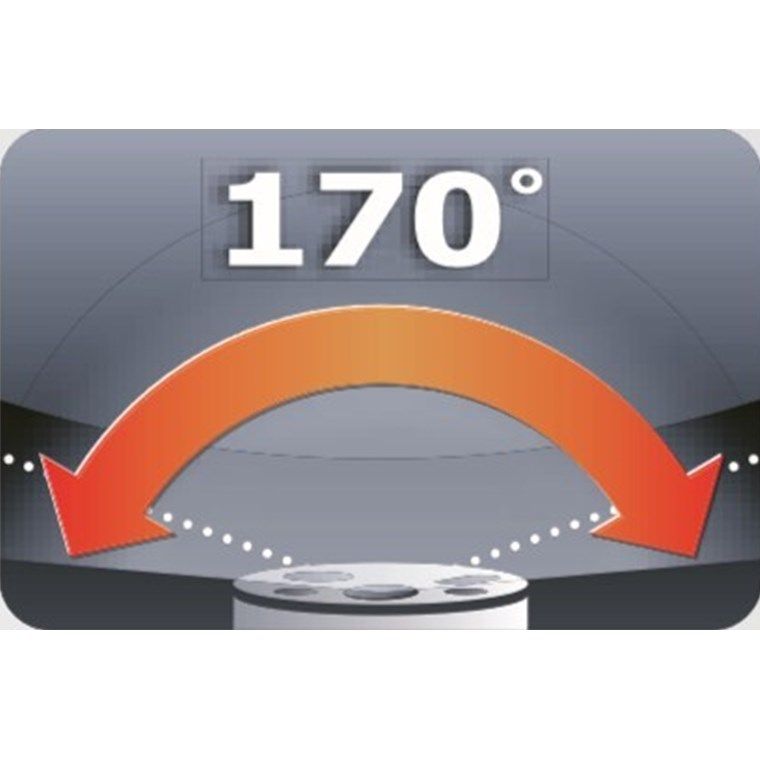

170° Field of ViewFeaturing an expanded 170° Field of View*, visualize more difficult-to-observe areas with ease. Even areas that are hard to observe, such as the reverse side of folds, can be visualised more easily. Examination times may be improved.
|

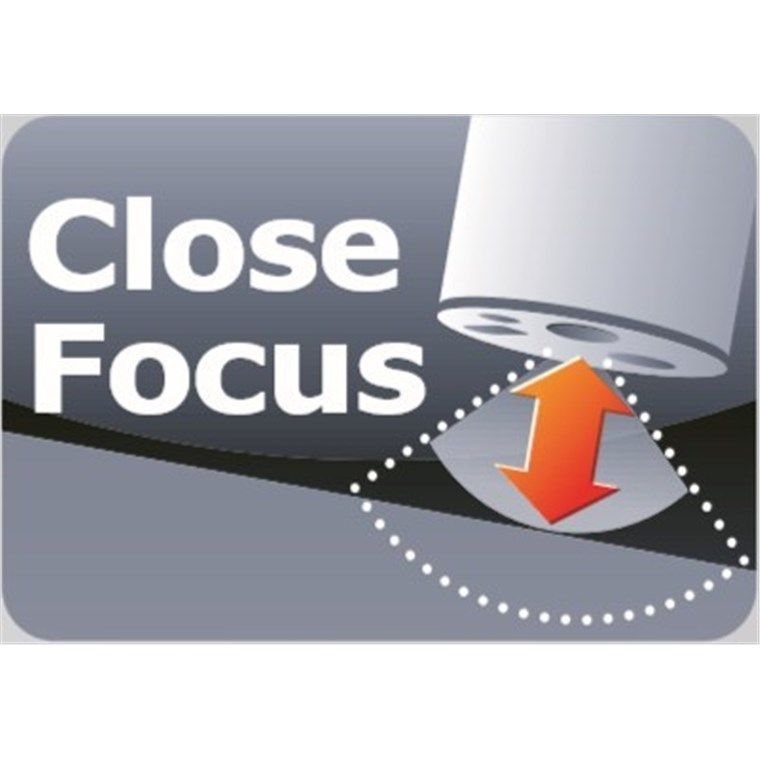

Close Focus Optics>With the 700 Series close focus optical system, capture images with exceptional quality as close as 2 mm, with less peripheral distortion.
|
![]() |
![]() |

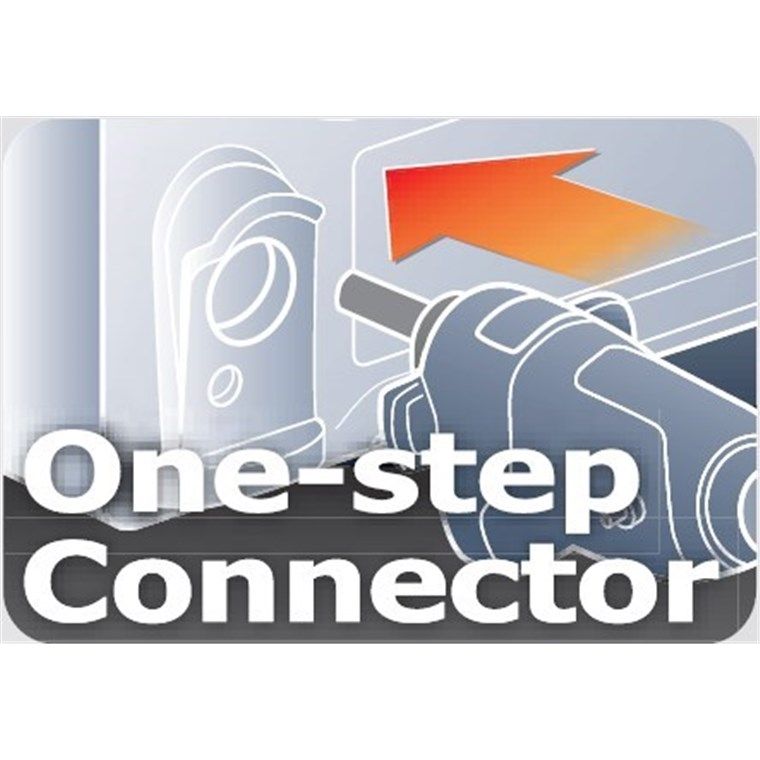

One Step ConnectorThe One-Step Connector is easily plugged in with just one step. Attaching a separate video connector is no longer required in setup, enhancing the efficiency of the clinical workflow.
|

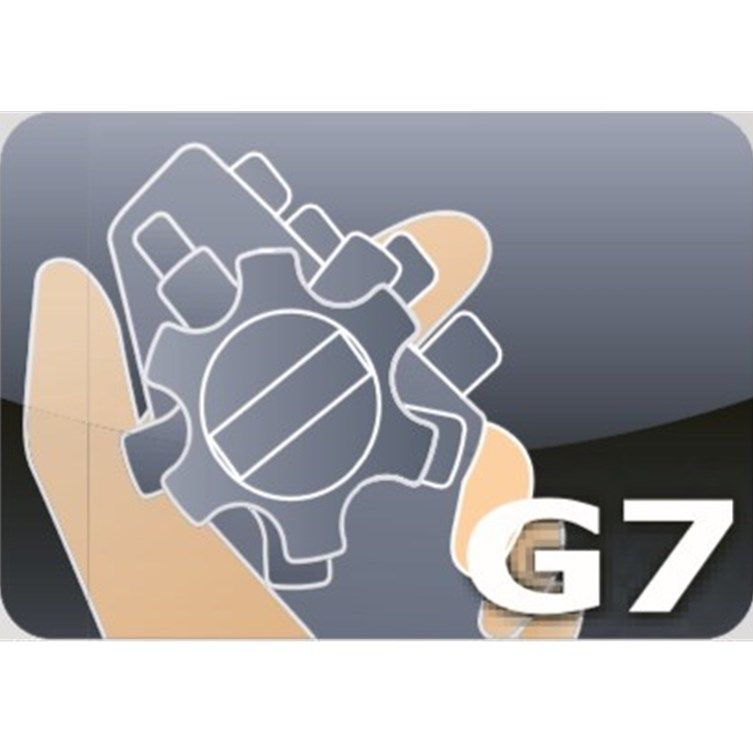

G7 Control PortionThe layout and size of the control portion and the angulation knobs are positioned to increase accessibility from the grip. The G7 grip is designed to have an easy and comfortable feel that optimizes performance and minimizes stress during clinical procedures.
|
![]() |
![]() |
Flexibility AdjustorThe Flexibility Adjuster allows the user to adjust the stiffness of the flexible portion of the scope according to preference. This is helpful when inserting the scope into segments such as the sigmoid colon and the transverse colon where the endoscope can more smoothly follow the intestinal tract.
|

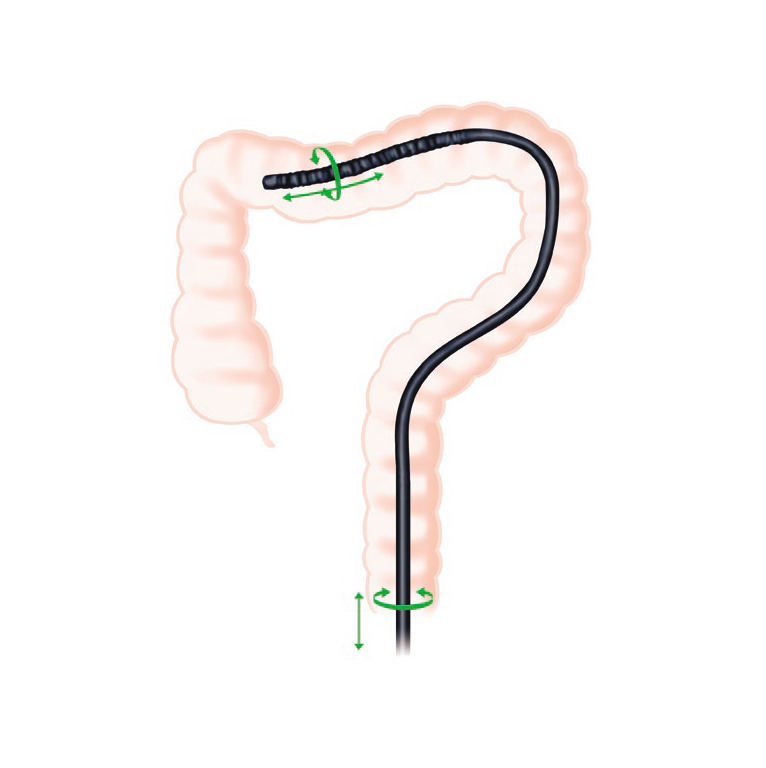

G7 Advanced Force TransmissionThe flexible portion is designed to transmit the pushing, pulling and rotating movements from the hand to the distal end of the endoscope, which provides enhanced manoeuvrability inside the digestive tract.
|
![]() |
![]() |

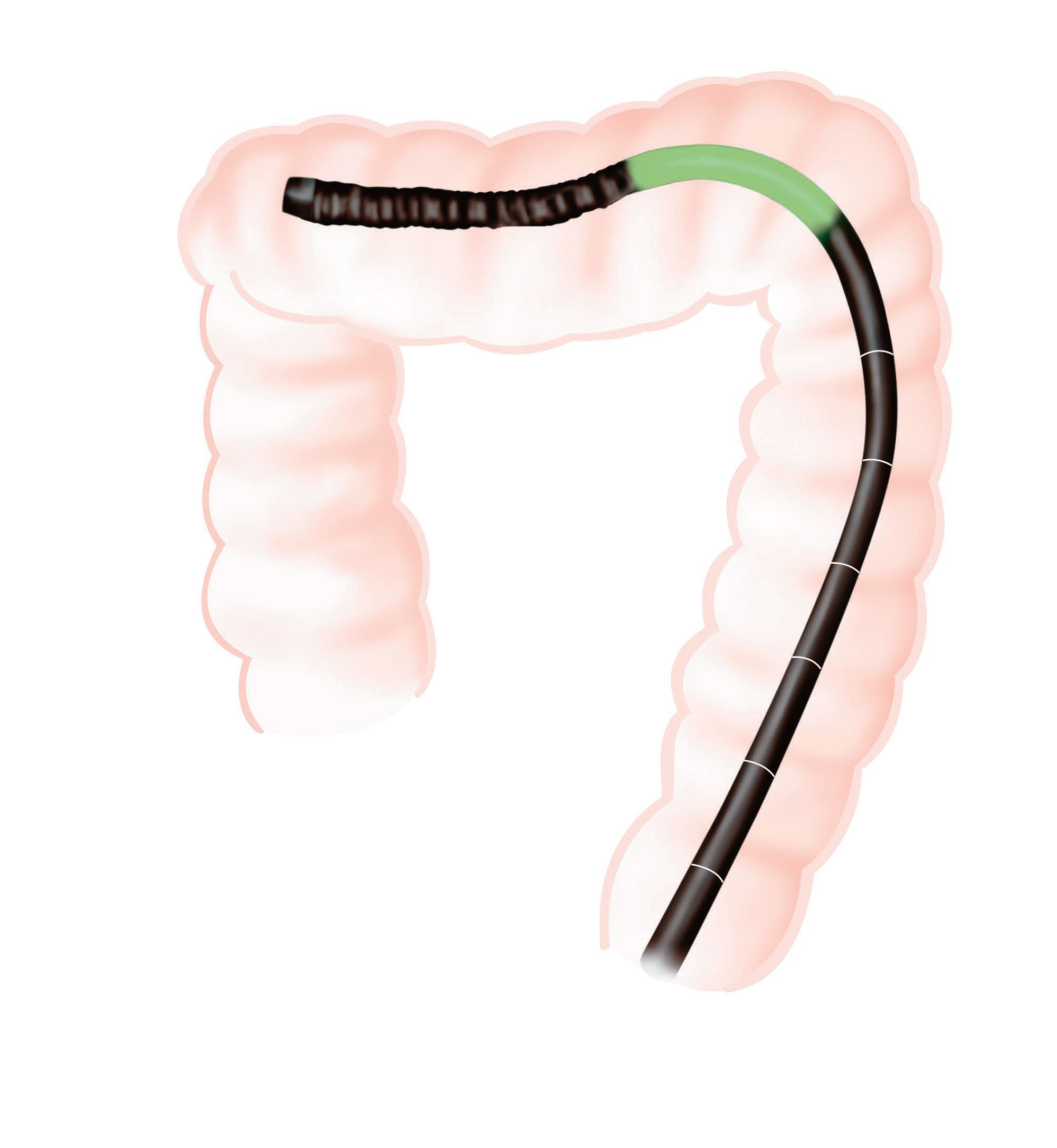

Adaptive BendingThe end of the bending section is soft, allowing the scope to follow the natural contours of the intestinal tract. The flexible bending section has been designed to return more easily to its straight form after passing through the tight curves of the colon.
|
EC-760RVL SPECIFICATIONS | |
---|---|
Field of View | 170° |
Observation Range | 2~100 mm |
Bending capability |
|
Working length | 1,330 mm(M) / 1,520 mm(I) / 1,690 mm(L) |
Total length | 1,650 mm(M) / 1,840 mm(I) / 2,010 mm(L) |
Distal end diameter | 12.0 mm |
Flexible portion diameter | 12.0 mm |
Minimum instrument channel diameter | 3.8 mm |
To be the first to review this product simply fill out the form to the left and let us know how you feel about this product!
To estimate the freight on this item simply enter the destination postcode and the desired quantity and click the "estimate" button.
High-resolution and smooth moving image quality is achieved with the CMOS-supported 60 frame progressive scanning technology. The result is smooth moving images with dramatically reduced blurring. The signal is digitally transmitted through the device, reducing susceptibility to outside noise and providing outstanding high-resolution image quality.
Featuring an expanded 170° Field of View*, visualize more difficult-to-observe areas with ease. Even areas that are hard to observe, such as the reverse side of folds, can be visualised more easily. Examination times may be improved.
With the 700 Series close focus optical system, capture images with exceptional quality as close as 2 mm, with less peripheral distortion.
The One-Step Connector is easily plugged in with just one step. Attaching a separate video connector is no longer required in setup, enhancing the efficiency of the clinical workflow.
The layout and size of the control portion and the angulation knobs are positioned to increase accessibility from the grip. The G7 grip is designed to have an easy and comfortable feel that optimizes performance and minimizes stress during clinical procedures.
The Flexibility Adjuster allows the user to adjust the stiffness of the flexible portion of the scope according to preference. This is helpful when inserting the scope into segments such as the sigmoid colon and the transverse colon where the endoscope can more smoothly follow the intestinal tract.
The flexible portion is designed to transmit the pushing, pulling and rotating movements from the hand to the distal end of the endoscope, which provides enhanced manoeuvrability inside the digestive tract.
The end of the bending section is soft, allowing the scope to follow the natural contours of the intestinal tract. The flexible bending section has been designed to return more easily to its straight form after passing through the tight curves of the colon.
EC-760RVL SPECIFICATIONS | |
---|---|
Field of View | 170° |
Observation Range | 2~100 mm |
Bending capability |
|
Working length | 1,330 mm(M) / 1,520 mm(I) / 1,690 mm(L) |
Total length | 1,650 mm(M) / 1,840 mm(I) / 2,010 mm(L) |
Distal end diameter | 12.0 mm |
Flexible portion diameter | 12.0 mm |
Minimum instrument channel diameter | 3.8 mm |
