Fujifilm ED-580XT Duodenoscope

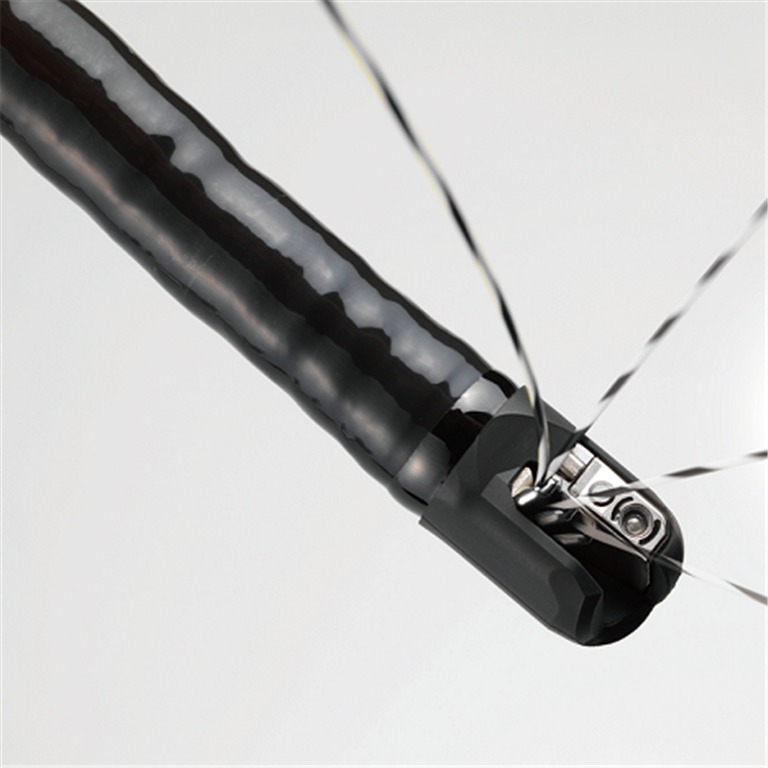

Elevator Mechanism
Movement of the elevator lever at the control knob on the ED-580XT Duodenoscope directly translates to the elevator responsiveness, allowing for smooth, precise positioning of instruments and guidewires.

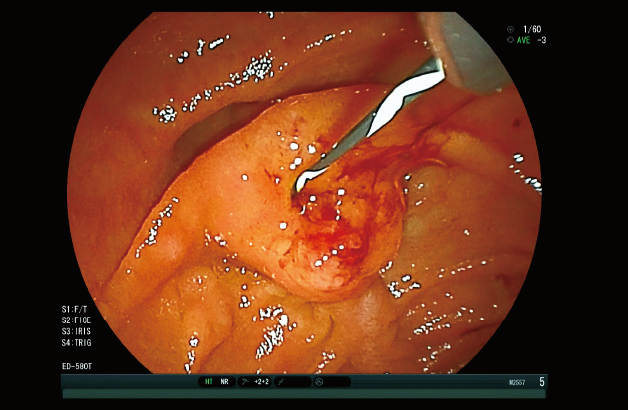

Guide Wire Lock
The guide wire lock of the ED-580XT Duodenoscope can hold multiple .035 guide wires securely in place, enhancing procedural efficiency.
Advanced Force Transmission
The design of the inner tube of the ED-580XT Duodenoscope allows a gradual firm to flexible taper, which provides advanced force transmission to maximize scope maneuverability inside the digestive tract.

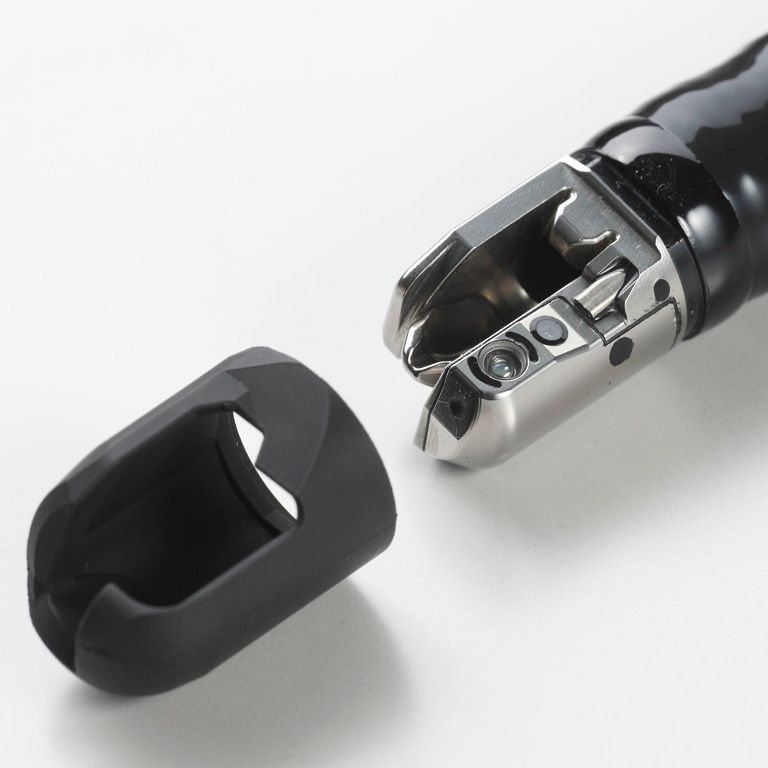

Improved Access for Cleaning
Fujifilm’s ED-580XT Duodenoscope features a removable single use distal end cap providing easy access during cleaning, as well as a sealed elevator mechanism which prevents bioburden build-up on and around the elevator wire.

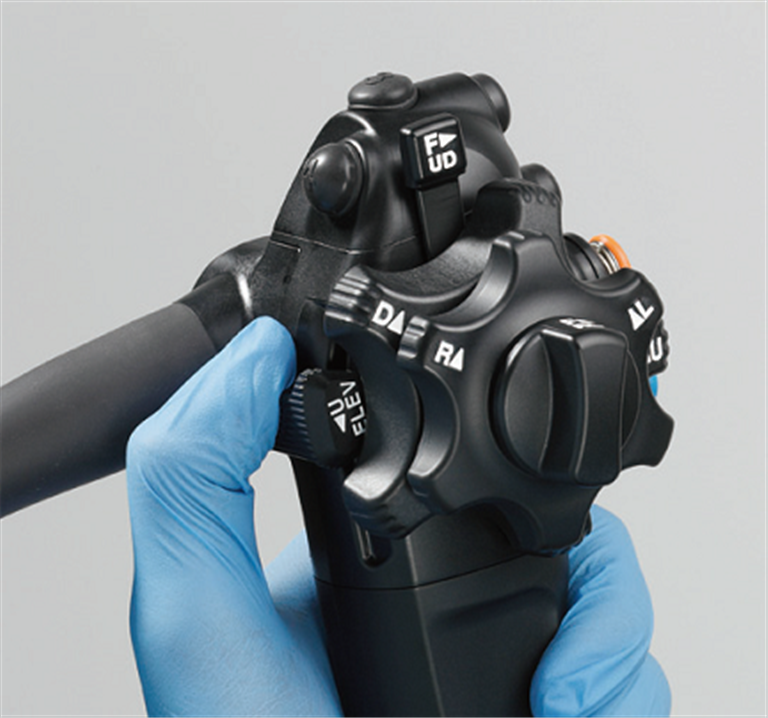

Exceptional Maneuverability
The Control Portion of the ED-580XT Duodenoscope features a G7 endoscope grip. The G7 grip is ergonomically designed to provide enhanced comfort with a rounded handle surface, enabling intuitive operation. The angulation of the buttons and knobs on the scope handle provide pressure relief – intended to minimize hand fatigue, optimize procedural performance, and provide more control at the distal tip.
| GENERAL | |
|---|---|
| Field of View | 100° |
| Viewing direction | 95° (retro-viewing 5°) |
| Observation Range | 4~60mm |
| Bending capability |
|
| Working length | 1,250 mm |
| Total length | 1,550 mm |
| Distal end diameter | 13.1 mm |
| Insertion tube diameter | 11.3 mm |
| Minimum instrument channel diameter | 4.2 mm |
| Brochures | |
|---|---|
| Duodenoscope - Brochure | Product Manuals |
| Fujifilm ED-580XT Duodenoscope - Product Manual |
Brand: FujiFilm |
Code: ED580XT
APN: 9319499072261 |
Supplier Code: ED-580XT
Supplier Description: DUODENOSCOPE
Brand: FujiFilm |
Code: ED580XT
APN: 9319499072261 |
Supplier Code: ED-580XT
Supplier Description: DUODENOSCOPE
At a glance
Fujifilm’s duodenoscopes provide maximum flexibility, from the design of the distal end and the angulation mechanism to the flexible parts of the endoscope.
Elevator MechanismMovement of the elevator lever at the control knob on the ED-580XT Duodenoscope directly translates to the elevator responsiveness, allowing for smooth, precise positioning of instruments and guidewires.
|
|
|
|
Guide Wire LockThe guide wire lock of the ED-580XT Duodenoscope can hold multiple .035 guide wires securely in place, enhancing procedural efficiency.
|
Advanced Force TransmissionThe design of the inner tube of the ED-580XT Duodenoscope allows a gradual firm to flexible taper, which provides advanced force transmission to maximize scope maneuverability inside the digestive tract.
|
|
|
|
Improved Access for CleaningFujifilm’s ED-580XT Duodenoscope features a removable single use distal end cap providing easy access during cleaning, as well as a sealed elevator mechanism which prevents bioburden build-up on and around the elevator wire.
|
Exceptional ManeuverabilityThe Control Portion of the ED-580XT Duodenoscope features a G7 endoscope grip. The G7 grip is ergonomically designed to provide enhanced comfort with a rounded handle surface, enabling intuitive operation. The angulation of the buttons and knobs on the scope handle provide pressure relief – intended to minimize hand fatigue, optimize procedural performance, and provide more control at the distal tip.
|
|
IMPROVED TREATMENT CAPABILITY

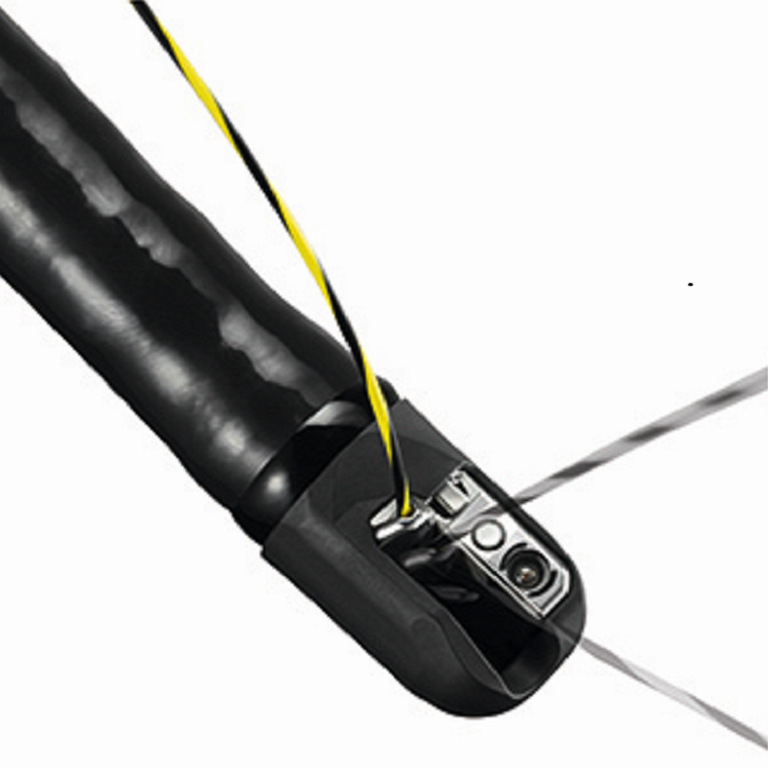

Incorporated into the distal tip of the ED-580XT, the G-Lock contains the forceps elevator and the contact section, enabling the guidewire to be simply and securely fixed into position by using the forceps elevator. In addition, the specially designed round shaped forceps elevator reduces the risk of guidewire damage. The inner tube of the instrument channels uses an optimised material to enable a device to be inserted smoothly, supporting rapid device exchange. Designed to work in harmony with the endoscopist, the new G-Lock and low friction instrument channel support efficiency and ease of use during ERCP procedures.

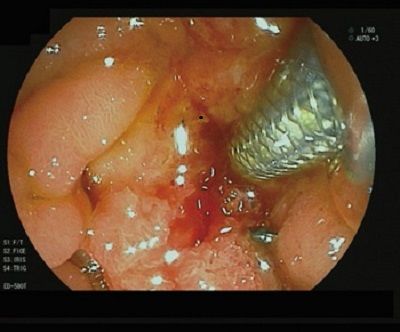

INCREASED ANGLE OF ENDOTHERAPY DEVICES
The forceps elevator design increases the maximum angle that endotherapy devices can be introduced. Movement of the elevator lever at the control body of the duodenoscope translates accurately to the distal tip, allowing for very precise positioning of instruments.
