OPTOMIC OtoSmart Basic Workstation

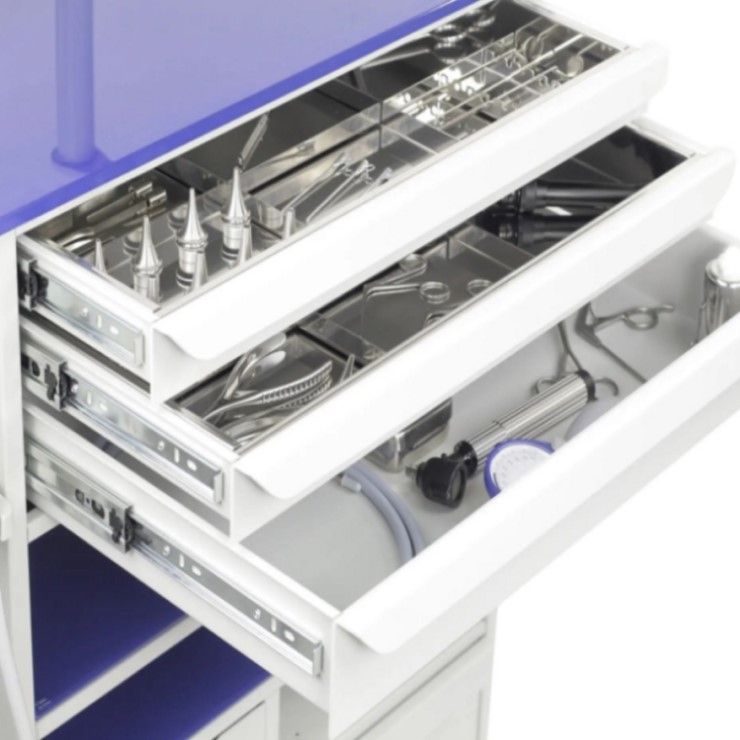

Drawers
Drawer cabinet with 4 spacious drawers and a slide-out work surface. All drawers slide out fully on highly-resistant slides with damper system and automatic final closure.

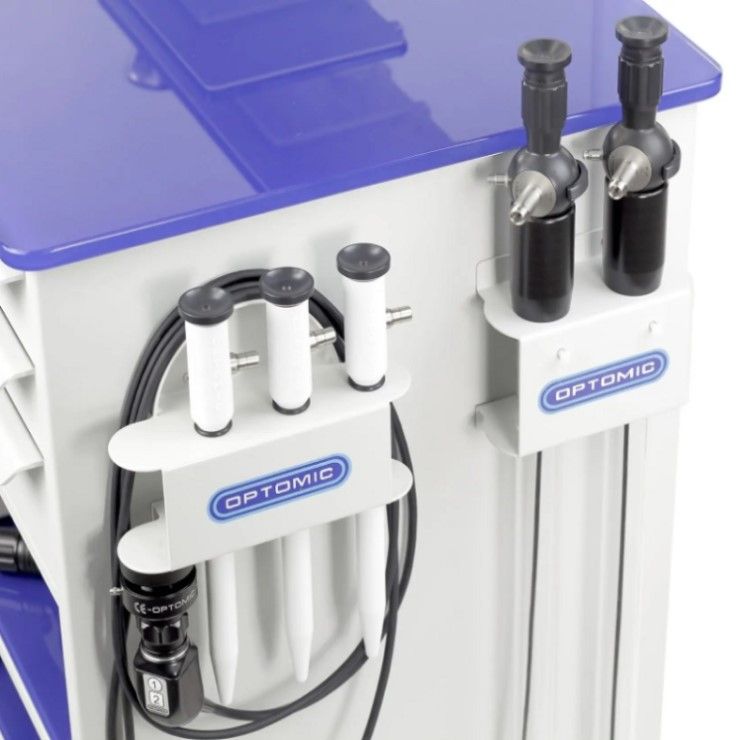

Scope Holder
Rigid and flexible endoscopes are kept clean and organised in disinfectable internal sheaths. The scope organiser offers maximum utility in the minimum space.

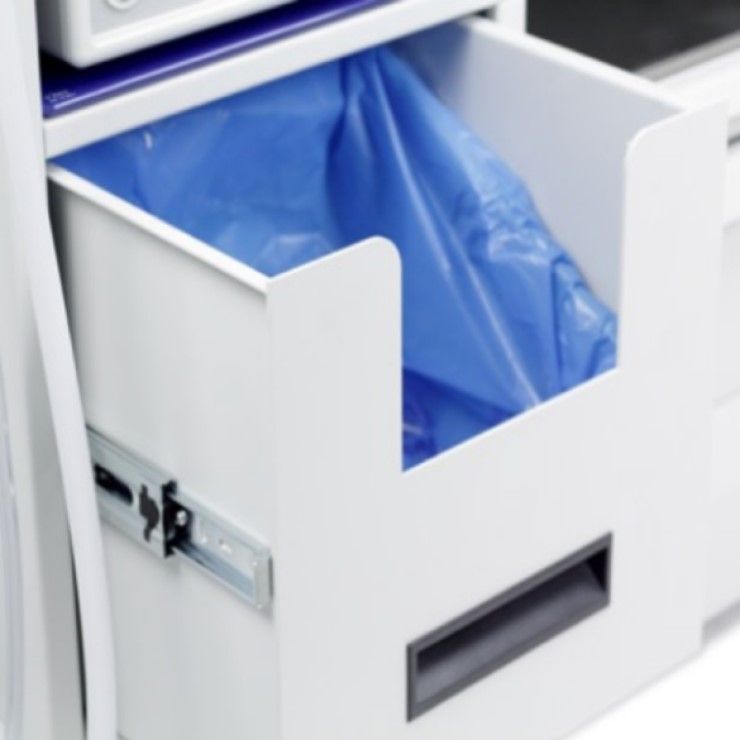

Waste Bin
The waste bin is activated by an electromagnet. At the touch of the button (left or right), the waste bin automatically slides out.
High Power Suction System
The built-in and silent suction system is vibration-free, making it possible to use the microscope and the suction system simultaneously.
| OTOSMART SPECIFICATIONS | |
|---|---|
| ASPIRATION | 70L/min - Adjustable and measured by vacuum meter; Operating time limit: 30min; 1L secretion container |
| DESK SURFACE | 87cm x 47.5cm - Coloured tempered glass cover included |
| CENTRAL SHELVES | 63 x 43.5 x 1.5cm - Optional glass cover |
| MAIN DRAWERS | 1st and 2nd drawers: 60.5 x 38 x 8cm (optional stainless steel tray 3rd drawer: 60.5 x 38 x 8cm (optional stainless steel tray) |
| LOWER DRAWER | 30cm x 38cm x 14cm |
| WASTE BIN | 25 x 25 x 25cm / 15L |
| COLOURS | Blue (other colours available) |
| MATERIALS | Carbon steel structure / Electrostatic epoxy paint; Tempered safety glass |
| DIMENSIONS WITHOUT ACCESSORIES | 90 x 95 x 50cm |
| WEIGHT WITHOUT ACCESSORIES | 120kg |
| MAINS CONNECTION | 230V - 50Hz (120V - 60Hz optional) |
Brand: Optomic Microscope |
Code: OPT67633014
Supplier Code: 67633014
Brand: Optomic Microscope |
Code: OPT67633014
Supplier Code: 67633014
At a glance
Optomic OTOSMART ENT Workstation
DrawersDrawer cabinet with 4 spacious drawers and a slide-out work surface. All drawers slide out fully on highly-resistant slides with damper system and automatic final closure.
|
|
|
|
Scope HolderRigid and flexible endoscopes are kept clean and organised in disinfectable internal sheaths. The scope organiser offers maximum utility in the minimum space.
|
Waste BinThe waste bin is activated by an electromagnet. At the touch of the button (left or right), the waste bin automatically slides out. |
|
|
|
High Power Suction SystemThe built-in and silent suction system is vibration-free, making it possible to use the microscope and the suction system simultaneously.
|
The OTOSMART ENT workstation fully satisfy the most demanding needs of space and storage in the ENT Doctor's office. The modular design concept allows for trays, drawers, supports and shelves to be rearranged to suit different setups as required. Adding the optional monitor, fiberscope, endoscope supports and/or used instruments tray, makes the OPTOMIC OTOSMART workstation the most compact unit around.
- All in one solution.
- Elegant and smart design.
- Spacious work-surfaces and drawers.
