OPTOMIC OP-S10 ENT CHAIR

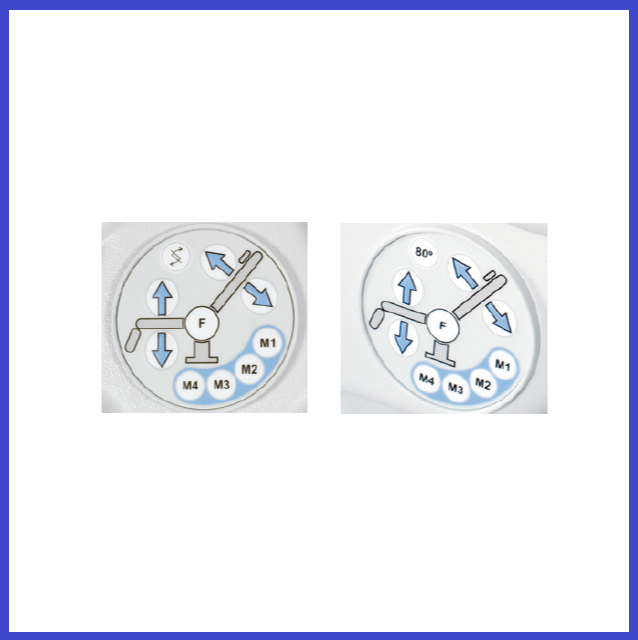

Function Controls
Using any of the four redundant keyboards placed on different sides of the chair, the chair can be controlled from any position. By simply pressing the F key, the chair rotation is blocked and the chair breaks instantly.

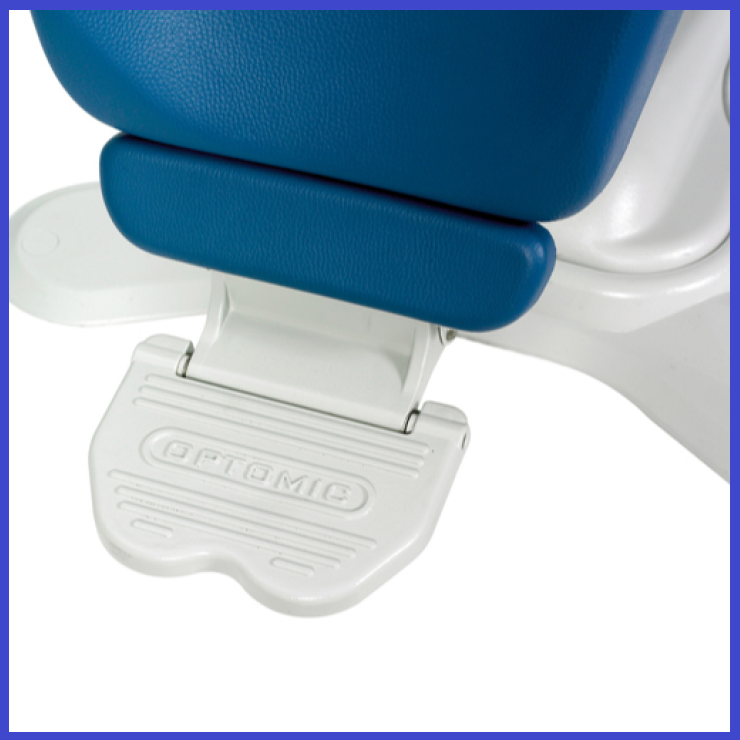

Footrest
The narrow legrest and footrest prevents the patient from spreading legs. This allows the doctor to get closer to the patient when working in front or front-side position. Despite its small frame, the footrest if very sturdy and can hold the bulk of the patient's weight.
Backrest Travelling System
The OP-S10 chair design protects the lumbar area, preventing the patient's clothing from moving around the waist. It also allows the doctor to adopt a comfortable position when he or she is sitting beside the patient.
| OP-S10 SPECIFICATIONS | ||
|---|---|---|
| UP/DOWN MOVMENT | Electrical | |
| BACKREST AND LEGREST MOVEMENT | Electrical | |
| PROGRAMMABLE MEMORIES | 6 memories (4 programmable + 80 degree + Trendelenburg) | |
| MOVEMENT CONTROL | 4 keyboards and (foot pedal optional) | |
| SAFETY BLOCKING | Stop and safety in a single key | |
| EMERGENCY STOP | E-stop button | |
| BACK | Abatible | |
| UPHOLSTERY | PUR melting, no seams, latex free, washable (available in several colours) | |
| ARMREST | Folding armrests | |
| HEADREST | Variable height and inclination. Removable Adjustable headrest optional | |
| CHAIR ROTATION | 270 degree with mechanical buffers and electromagnetic brake | |
| TRENDELENBURG POSITION | Pre-programmed movement | |
| 80 DEGREE NASAL EXAMINATION POSITION | Pre-programmed movement | |
| SLIDING BACKREST | Synchrnonised with movement | |
| CONNECTION BETWEEN POWERBOX AND CHAIR | 21V, 33V, video and communication signal | |
| MAXIMUM POWER (WITHOUT EXTERNAL DEVICES) | 400VA | |
| BACKREST ANGLE | From 80 Degrees to 190 Degrees | |
| SEATING HEIGHTS | Maxiumum 910mm - Minimum 530mm | |
| BASE DIMENSIONS | 600W x 730H | |
| MAXIMUM LOAD | 200kg |
| Brochures | |
|---|---|
| OP-S10-Chair-C077ENG21.pdf - Brochure |
Brand: Optomic Microscope |
Code: OPT68243100
Supplier Code: 68243100
Brand: Optomic Microscope |
Code: OPT68243100
Supplier Code: 68243100
Function ControlsUsing any of the four redundant keyboards placed on different sides of the chair, the chair can be controlled from any position. By simply pressing the F key, the chair rotation is blocked and the chair breaks instantly.
|
|
|
|
FootrestThe narrow legrest and footrest prevents the patient from spreading legs. This allows the doctor to get closer to the patient when working in front or front-side position. Despite its small frame, the footrest if very sturdy and can hold the bulk of the patient's weight.
|
Backrest Travelling SystemThe OP-S10 chair design protects the lumbar area, preventing the patient's clothing from moving around the waist. It also allows the doctor to adopt a comfortable position when he or she is sitting beside the patient.
|
|
The OPTIMIC OP-S10 patient examination chair was designed by ENT specialists for ENT specialists. Sturdiness and smooth movements combine in the chair to achieve a high performance product. The geometry of the chair's structure adapts to achieve the optimum distance between the patient and the doctor in every step of the examination and the treatment.
- Sturdiness and Stability.
- Elegant and smart design.
- Strong folding armrests, backrest and legrest movement.
- Smoothness of movement.
- Electromagnetic rotation and brake.
- Motorized backrest rising and lowering system.
