Optomic OP-C16 Microscope

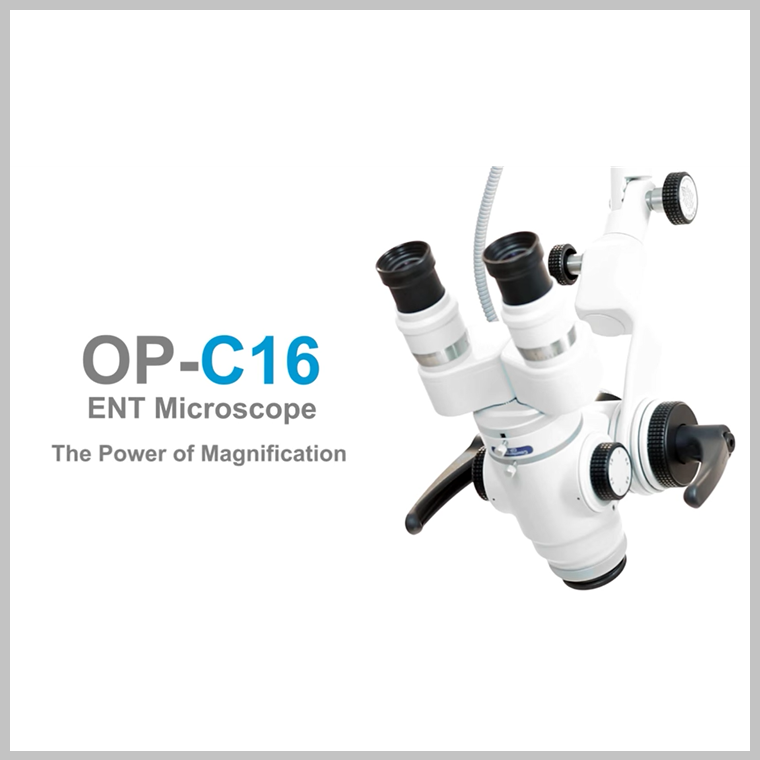

Binoculars
The Optomic OP-C16 microscope offers three options:
- Wide field straight binocular (standard)
- 45° inclined binocular (optional)
- 0-240° inclinable binocular (optional)

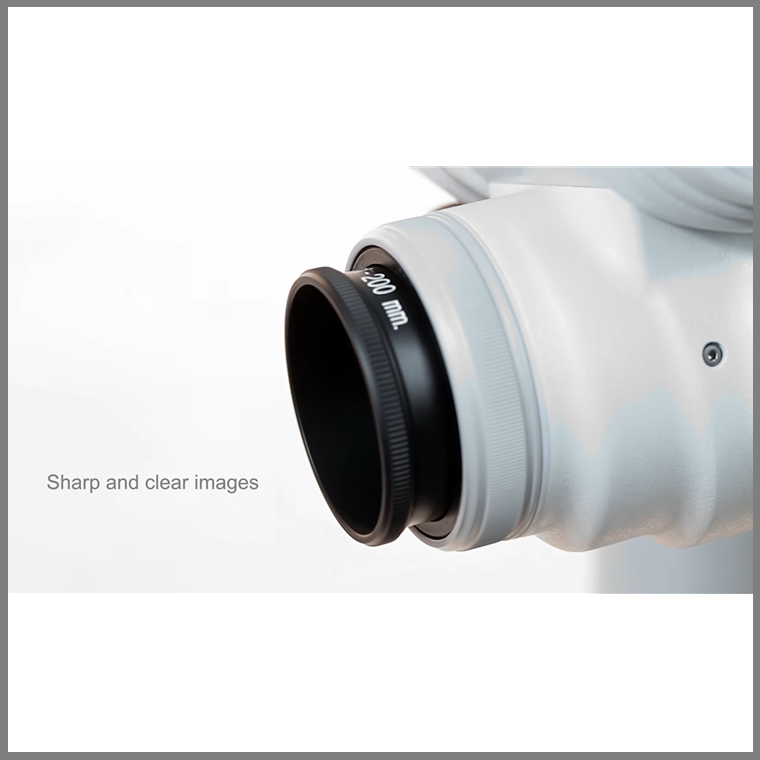

Eyepieces
Standard: 12.5x widefield eyepieces. Optional: 10x and 16x widefield eyepieces. Large diameter lenses. The optical coating offers a high resolution, contrast and definintion, providing bright and chroatically real images, and an extraordinary viewing quality.

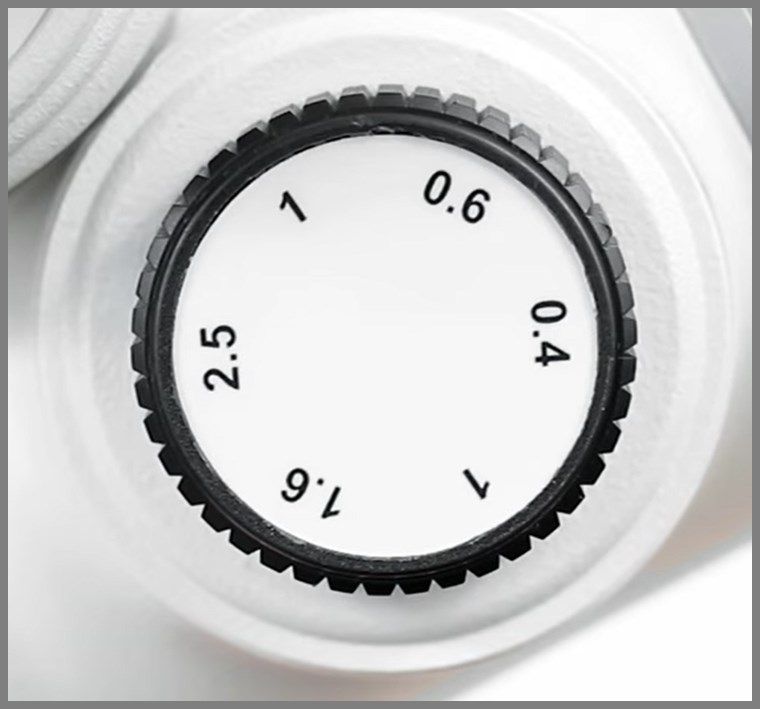

Effective Magnifications
5-step Galilei changer, permitting magnification from 1.0x up to 34x, depending on the chosen combination of objective, binocular and eyepieces.

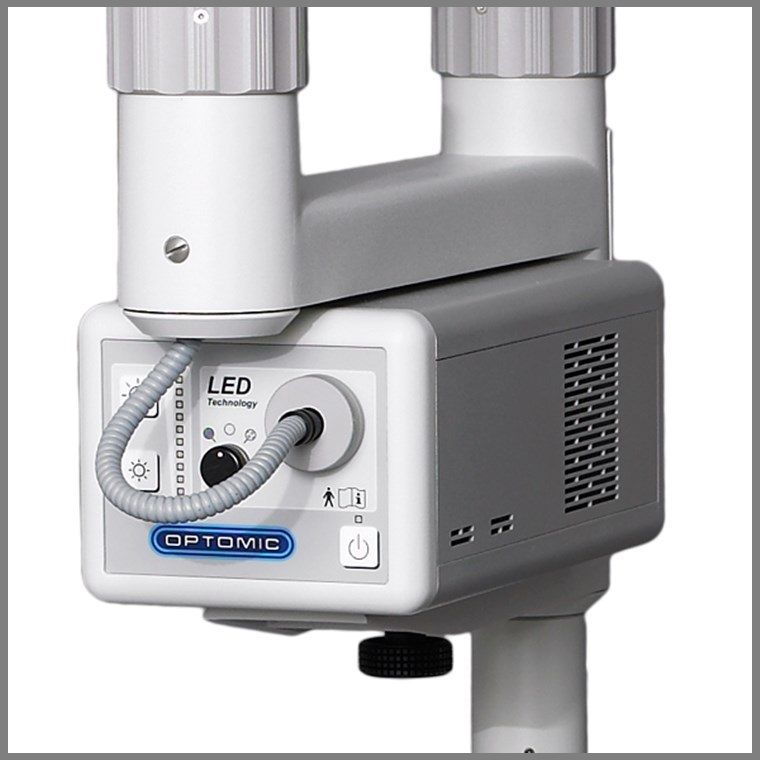

LED Technology
The fibrolux LED HP offers the latest technology in LED illumination enabling high efficiency lighting. It has an additional filter for a warmer light, as well as a remote switch and power outputs for accessories such as monitor, camera or laptop.
| OP-C16 MICROSCOPE SPECIFICATIONS | |
|---|---|
| HEAD | Stereoscopic head with micrometric focus |
| BINOCULAR | Wide field straight binocular (standard) |
| 45 degree inclined binocular (optimal) | |
| 0-240 degree inclinable binocular (optional) | |
| ILLUMINATION SYSTEM | Halogen, LED or Xenon light source |
| LIGHT CONDUCTION | Fiber optic cable |
| EYEPIECES | 12.5 x widefield eyepieces. 10x and 16x optional |
| MAGNIFICATIONS CHANGER | 5-steps Galilei |
| OBJECTIVE | 200mm standard objective. 250mm, 300mm and 400mm (optional) |
| HEAD AND ARM | With brakes and movements using angular contact bearings and high resistance conical cylinder bearings, Soft move system |
| VOLTAGE | 100/240V 50/60Hz |
| MOUNTING OPTIONS | Floor, wall or ceiling mount |
| ACCESSORIES | Beam splitters and video systems |
| Digitally soft software | |
| Monitor support | |
| Laptop tray | |
| Camera tray |
| Brochures | |
|---|---|
| OPT8263307 - Brochure |
Brand: Optomic Microscope |
Code: OPT8263307
APN: 9319499241384 |
Supplier Code: 08263307
Brand: Optomic Microscope |
Code: OPT8263307
APN: 9319499241384 |
Supplier Code: 08263307
At a glance
The OP-C16 microscope manufactured by OPTOMIC fulfils the most demanding ENT requirements. The OP-C16 microscope offers one of the widest ranges of lighting systems and beam splitters, as well as image and video capture and treatment devices in the market.
BinocularsThe Optomic OP-C16 microscope offers three options:
|
|
|
|
EyepiecesStandard: 12.5x widefield eyepieces. Optional: 10x and 16x widefield eyepieces. Large diameter lenses. The optical coating offers a high resolution, contrast and definintion, providing bright and chroatically real images, and an extraordinary viewing quality. |
Effective Magnifications5-step Galilei changer, permitting magnification from 1.0x up to 34x, depending on the chosen combination of objective, binocular and eyepieces.
|
|
|
|
LED TechnologyThe fibrolux LED HP offers the latest technology in LED illumination enabling high efficiency lighting. It has an additional filter for a warmer light, as well as a remote switch and power outputs for accessories such as monitor, camera or laptop.
|

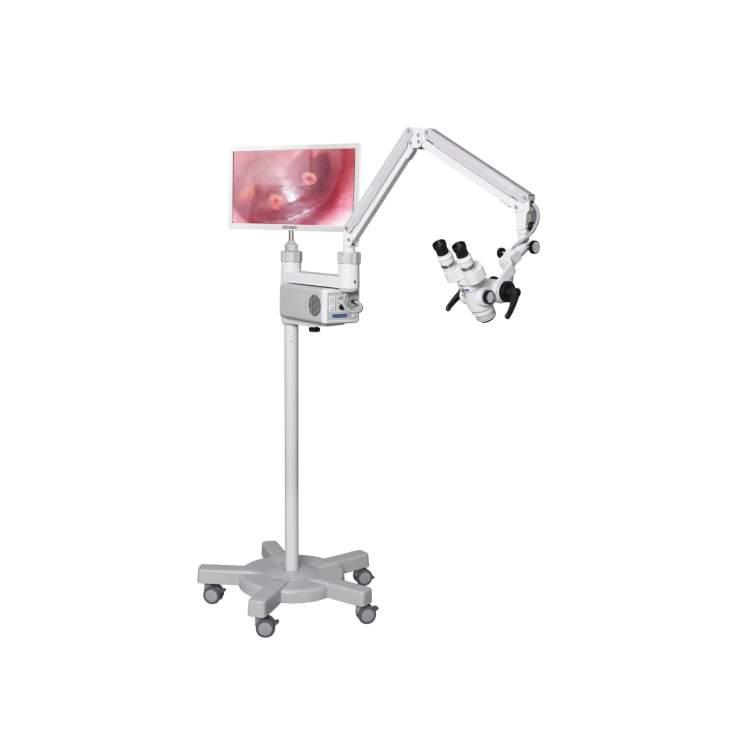

Ergonomics and Versatility
The OP-C16 microscope offers one of the widest ranges of lighting systems and beam splitters, as well as image and video capture and treatment devices in the market. Its excellent optical and mechanical features, together with its great mobility and versatility, make the OP-C16 microscope the ideal equipment for any treatment. The sturdiness and stability of the OP-C16 microscope, as well as the freedom of movement, enable the head to be placed in any desired position to allow the specialist to adopt an ergonomic posture.
