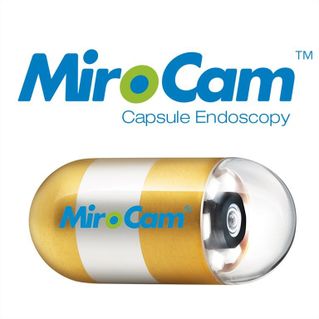

MiroCam MC1200 Single Camera Capsule
Product options:
- Mirocam's single head camera capsule for capsule endoscopy.
- High resolution: 320x 320 pixel image resolution
- Ultra wide 170 degree field of view.
- Easy to swallow small size: 10.8mm x 24.0mm
- Long operation time: 11 hours
- High frame rate: 3 fps
Capsule EndoscopyThe capsule has a frame rate of 3 frames per second, providing images of the small bowel for an in-depth diagnosis.
|
|
|
Easy to SwallowingMirocam's small size of only 10.8mm x 24.0mm allows for easy swallowing and minimum patient discomfort.
|
| SPECIFICATIONS | |
|---|---|
| Capsule Size | 10.8 x 24mm |
| Weight | 3.25g |
| Light | 6 White LED |
| Field of View | 170° |
| Viewing Depth | 3.0cm |
| Detectable Range | Under 0.1mm |
| Sampling Ratio | 3.0 fps |
| Working Time | 11 hours |
| Chemical Safety | pH 2.0 ~ pH 8.0 |
| Battery Type | Silver Oxide Cell |
| Operation Temperature | 20-40°C |
| Storage Temperature | 0-50°C |
| Brochures | |
|---|---|
| 00ZMC1200 - Brochure | Product Manuals |
| MiroCam MC1200 Single Camera Capsule - Product Manual |
Brand: Mirocam |
Code:
1200205
Product options:
Brand: Mirocam |
Code:
1200205
At a glance
- Mirocam's single head camera capsule for capsule endoscopy.
- High resolution: 320x 320 pixel image resolution
- Ultra wide 170 degree field of view.
- Easy to swallow small size: 10.8mm x 24.0mm
- Long operation time: 11 hours
- High frame rate: 3 fps
