Casio DZ-D100 Camera & DZ-S50 Dermoscope Dermatology Kit

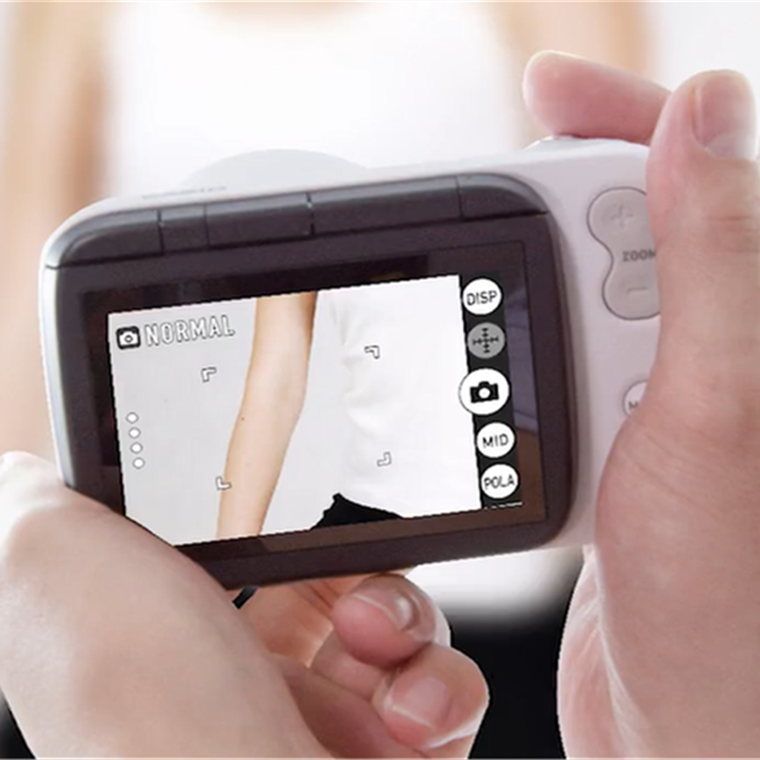

Dual Purpose Photography
An ordinary macroscopic image of the entire lesion can be taken without switching lenses. The user can then quickly zoom in for close up shots of the affected area.
![](/ts1725730255/attachments/Product/83978/Photograph.png)
![](/ts1725730255/attachments/Product/83978/Dermo%20image.png)

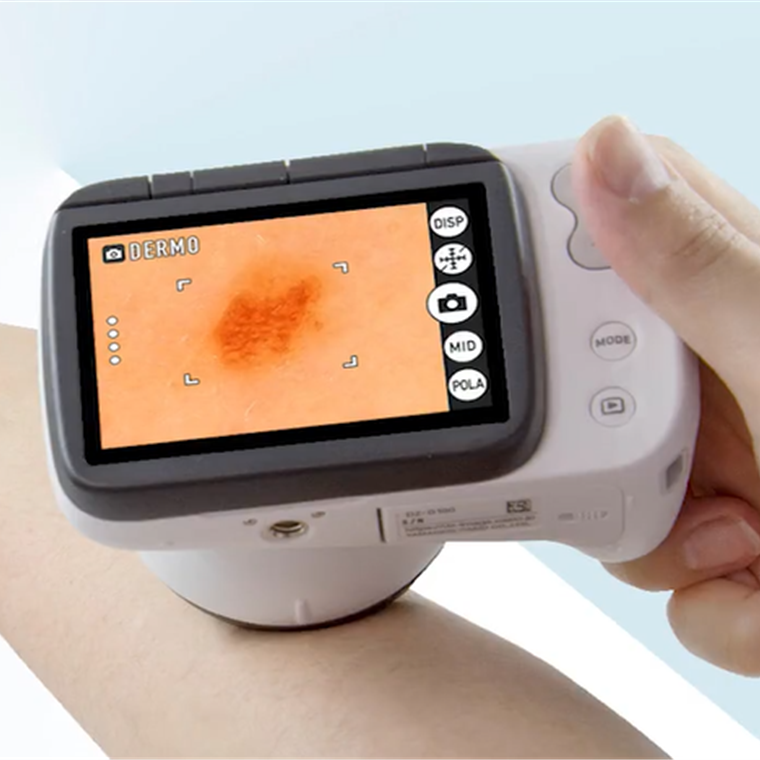

Dermatology Photograph
The user can photograph the entire lesion for close up shots of the affected area. Photographed images can be used for referrals to other medical institutions and to request opinions from other doctors.

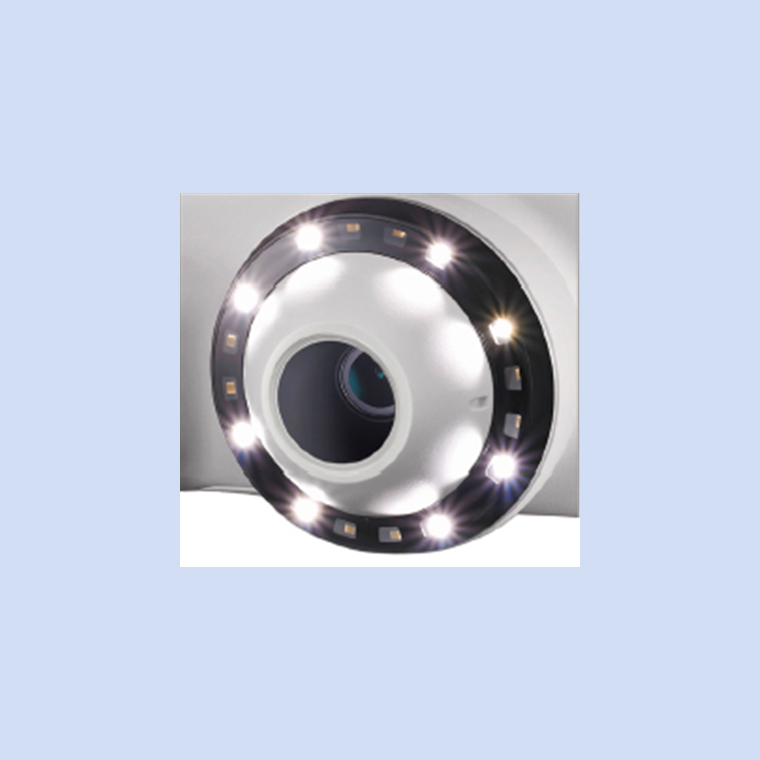

Bright and Clear LED Lights
When taking an ordinary photo, uniform illumination from the ring light outside the lens enables faithful reproduction of color tones. In close-up mode, illumination from inside the lens yields a stable and clear image quality.
![](/ts1725730255/attachments/Product/83978/Camera%20LED%20Lights.png)
![](/ts1725730255/attachments/Product/83978/Flip.png)

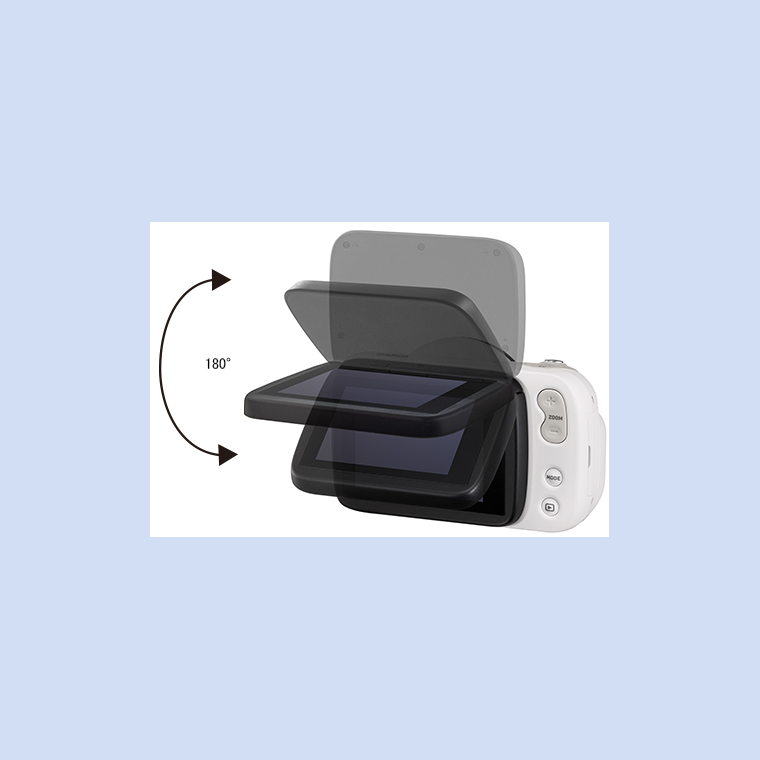

Tilt LCD Monitor
The LCD monitor can be tilted to different angles for easy visibility under all conditions.

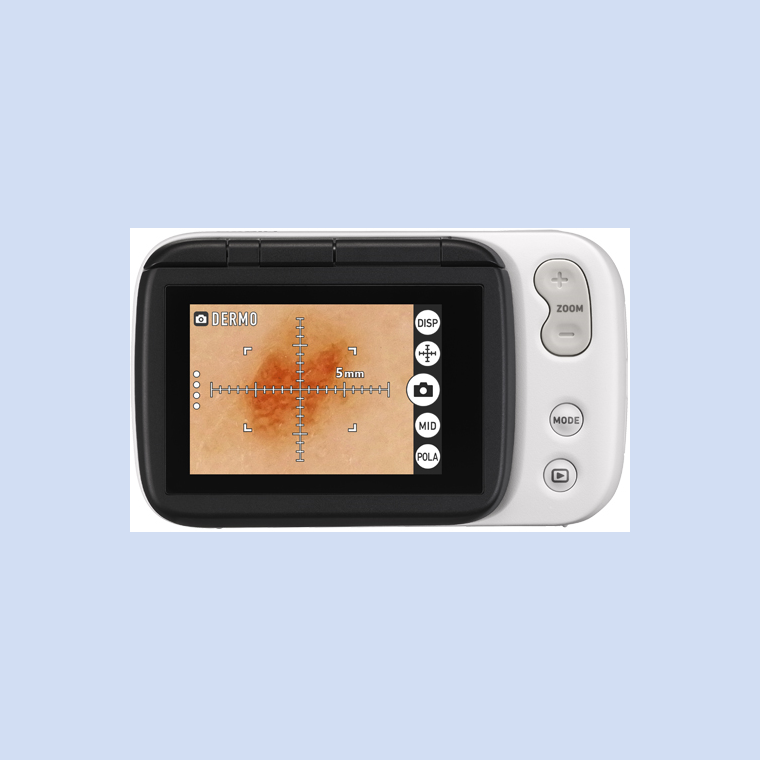

Scale Display
This function superimposes a scale over a close-up image, immediately showing the size of the affected area. The scale can be rotated in the direction to be measured by simply touching the screen.
![](/ts1725730255/attachments/Product/83978/Screen%202.png)
![](/ts1725730255/attachments/Product/83978/HDMI.png)

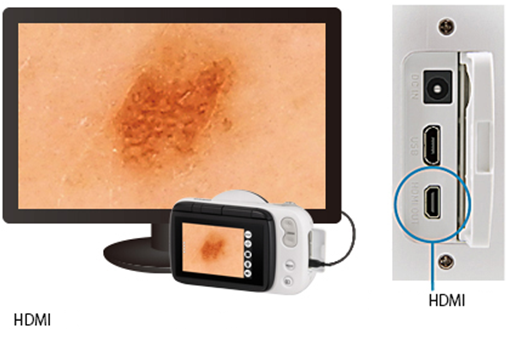

HDMI Connector
The camera can be connected via HDMI cable to a large monitor or projection screen for viewing of images, either in real time or afterward. This is useful for providing explanations to patients or making presentations at conferences.

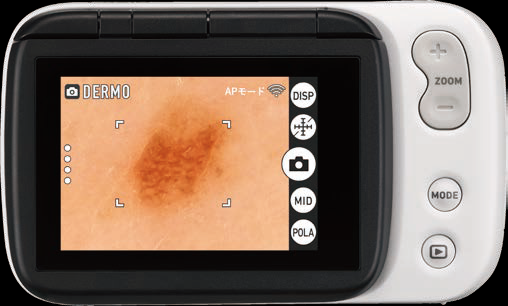

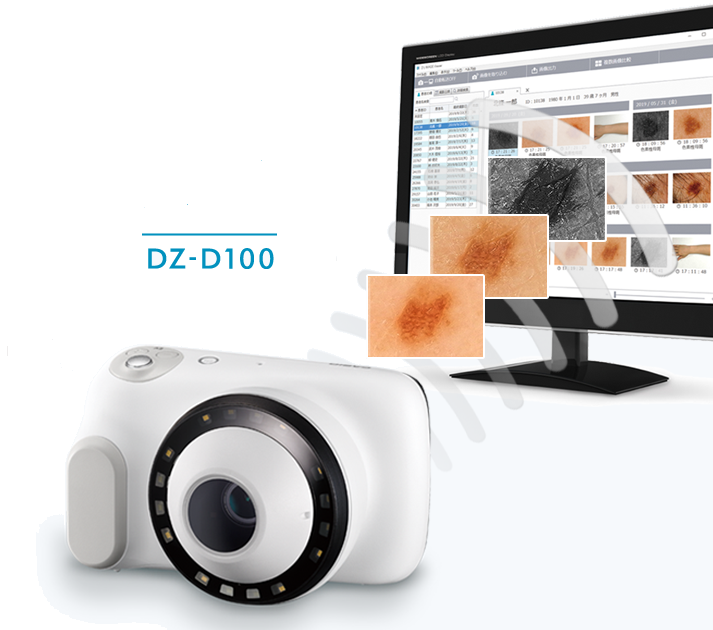

Data Transfer
Dermocamera photos and videos can be easily managed on a personal computer using the D'z IMAGE Viewer application software. Automatic transfer via WI-FI enables data transfer each time a photo is taken. When WI-FI isn't available, transfer using a USB cable or a SD memory card is also enabled.
![](/ts1725730255/attachments/Product/83978/Dermo%20with%20WIFI.png)
![](/ts1725730255/attachments/Product/83978/Finger%20web.png)

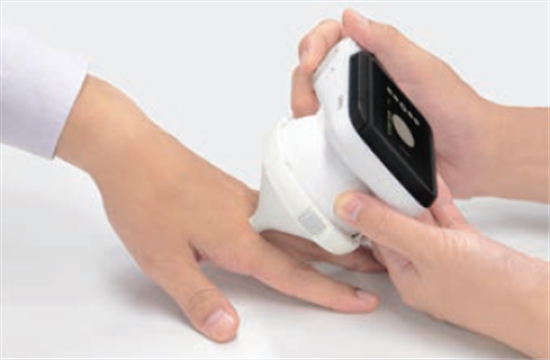

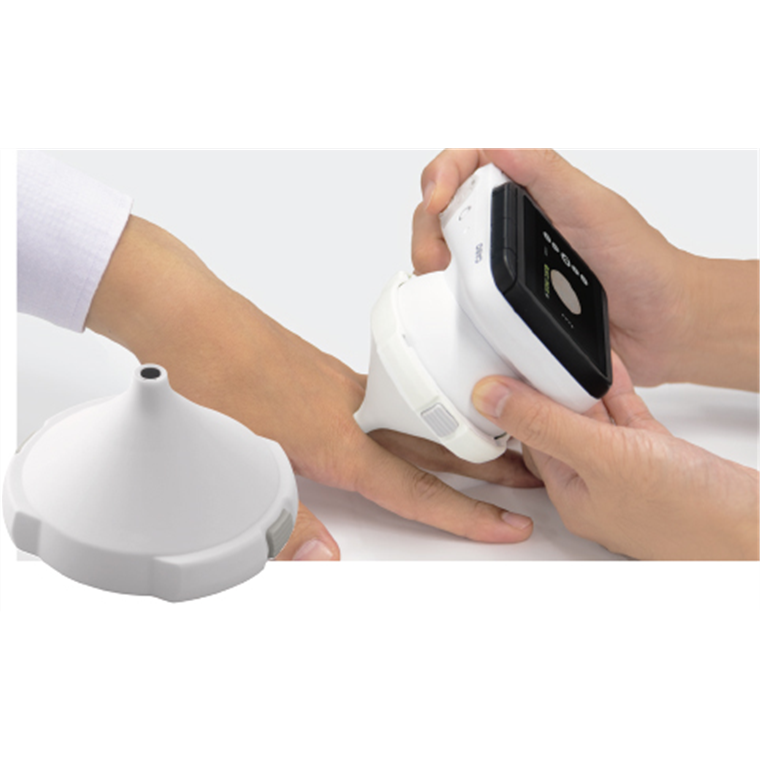

Small Diameter Adapter
When photographing lesions in locations that are difficult to focus on, such as between the fingers or inside an ear, fit the small-diameter adapter to the camera to take the shot. The angle of view is 6mm.

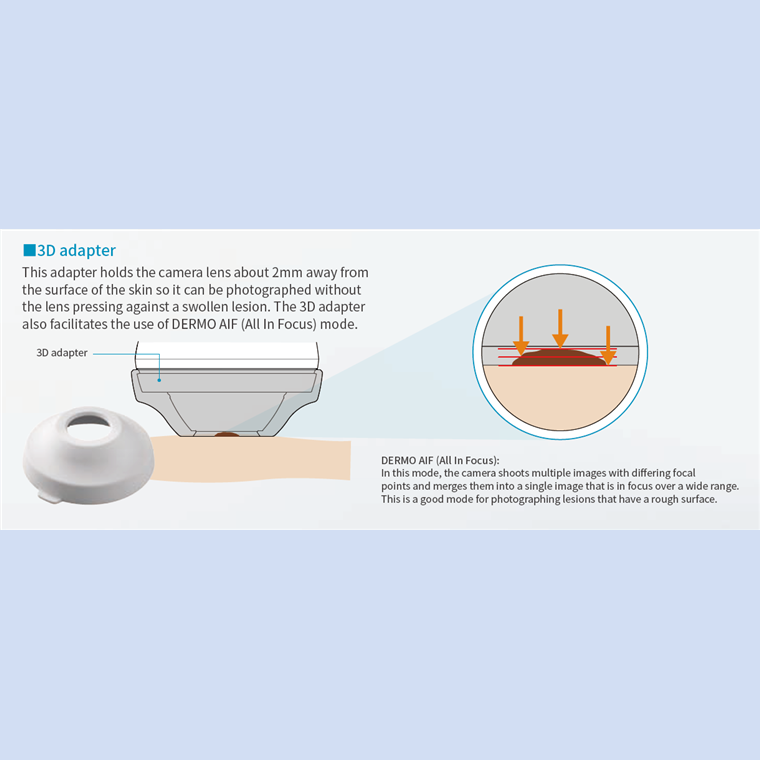

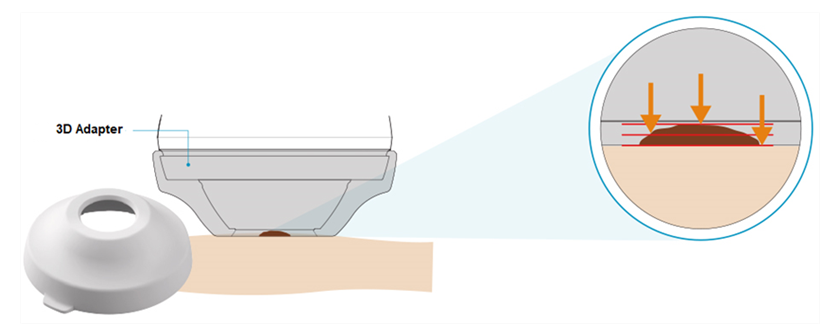

3D Adapter
This adapter holds the camera lens about 2mm away from the surface of the skin so it can be photographed without the lens pressing against a swollen lesion. The 3D adapter also facilitates the use of DERMO AIF (All in Focus) mode.
![](/ts1725730255/attachments/Product/83978/3D%20Adapter.png)
![](/ts1725730255/attachments/Product/83978/Dermoscope%20Lens.png)

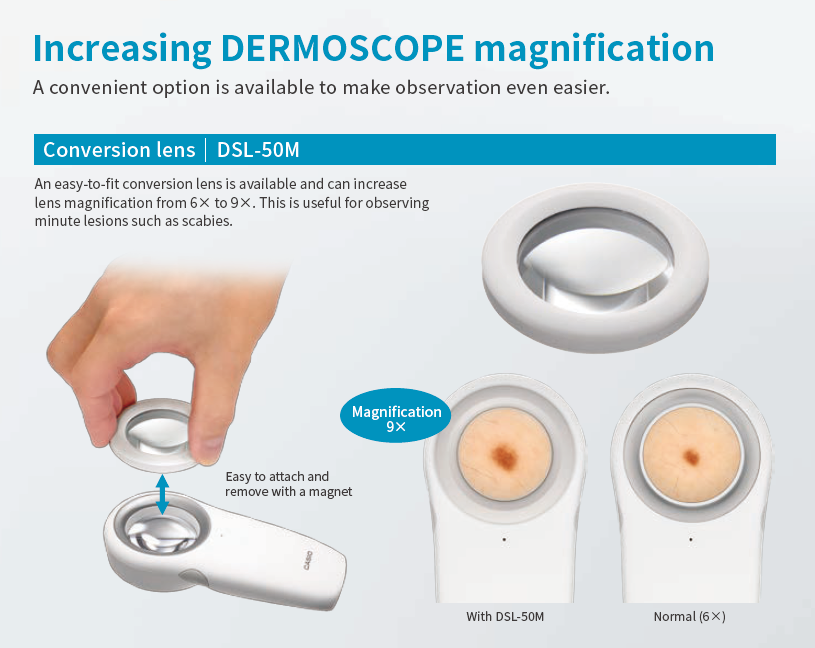

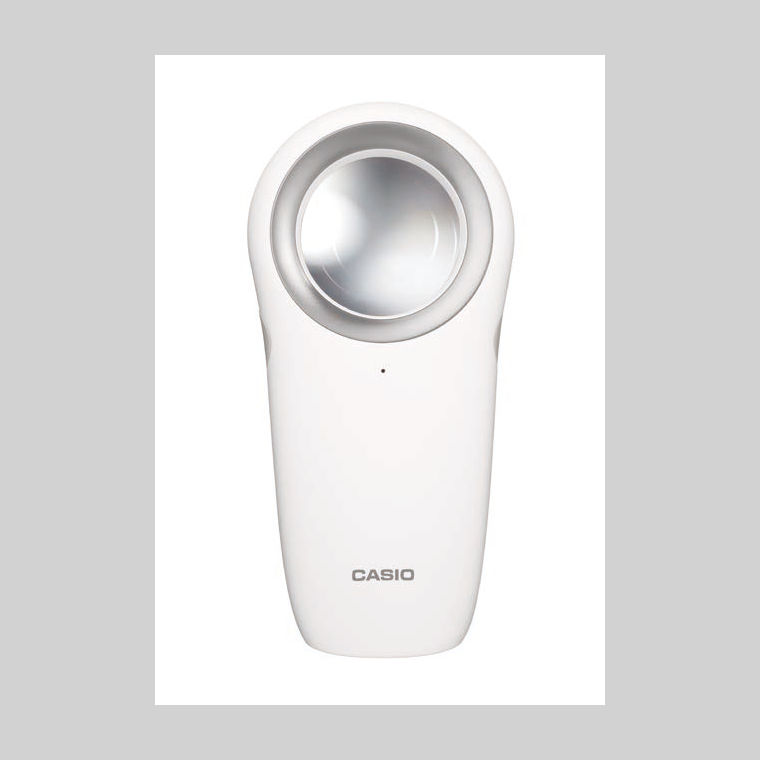

Dermoscope Large Diameter Lens
Features a large diameter 40.5mm lens with a wide field of vision and low distortion. Since it is easy to focus, users can observe lesions without putting their face right next to the affected area or making fine position adjustments. The magnification without the conversion lens is 6x. The magnification with the conversion lens attached is 9x.

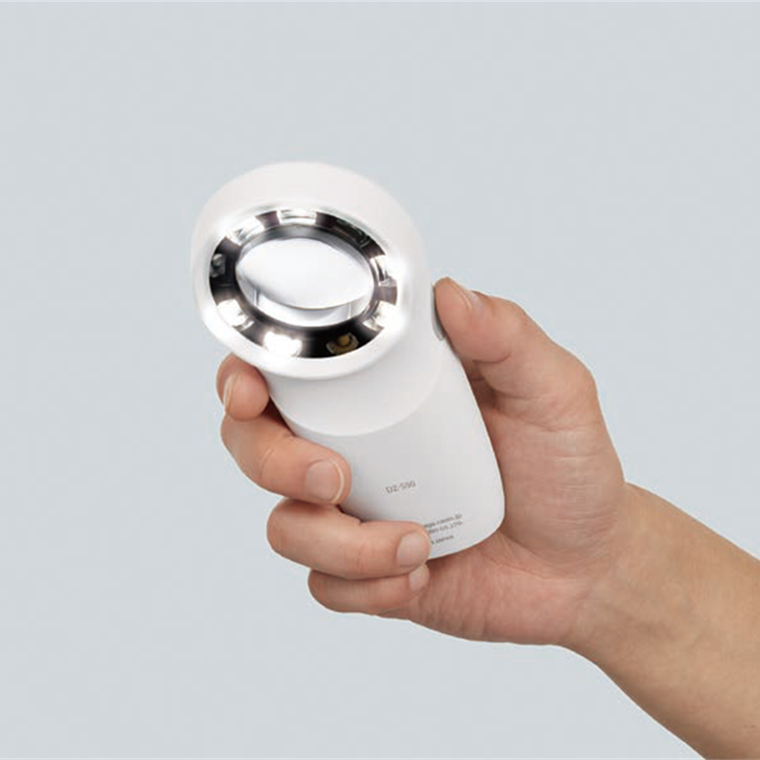

High Luminance LED Light
The LED light has an illumination intensity of 30,000lux, allowing users to see lesions clearly in sharp detail and assisting accurate observation of color. The device is energy efficient, allowing about 120 minutes of continuous use on a single charge. This reduces concern about keeping patients waiting during recharge.
![](/ts1725730255/attachments/Product/83978/LED%20Lights.png)
![](/ts1725730255/attachments/Product/83978/Imaging.png)

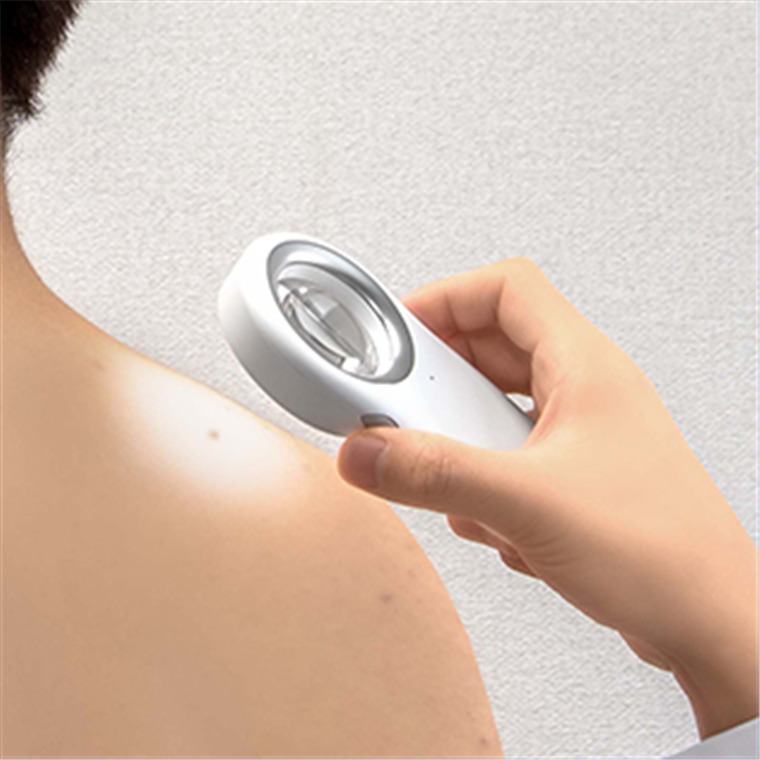

Dermoscope Shape and Design
The grip fits comfortably in the hand, and the power and polarization switching buttons are located where the user’s fingers are positioned when holding it. The dermoscope is lightweight, at approximately 125g. The symmetrical shape can be used with either the left or right hand.

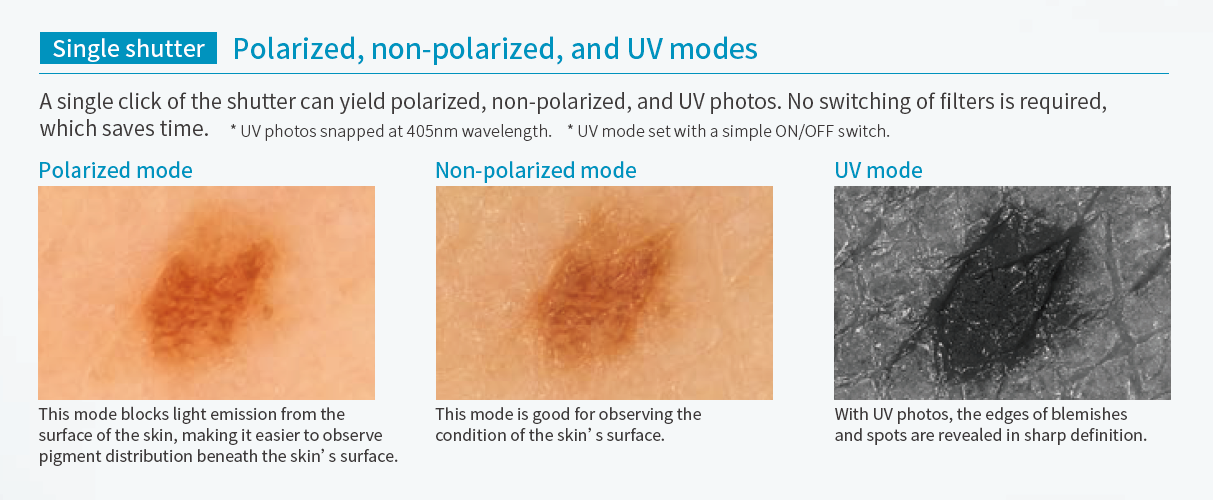

Polarised / Non-Polarised Mode Switching
The LED light can be changed from polarized to non-polarized mode with a simple switch. Polarized mode works best for observing pigment distribution beneath the skin’s surface, while non-polarized mode is good for observing the condition of the skin’s surface.
![](/ts1725730255/attachments/Product/83978/Polarised%20&%20Non%20Polarised%20V2.png)
DZ-S100 SPECIFICATIONS | |
---|---|
Valid Pixels | 5184 x 3888; Approximately 20.16 megapixels |
Image Sensor |
|
Image Style Formats (Still Images) |
|
Image File Formats (Video) |
|
Recording Media | SD Memory Card, SDHC Memory Card, SDXC Memory Card |
Recording Capacity (Still Images) |
|
Lens |
|
Zoom |
|
ISO Sensitivity (Standard Output Sensitivity | NORMAL mode: Auto; Close-up (DERMO) photography: Fixed |
Data Transfer Method | Wi-Fi / micro USB cable / SD memory card |
Monitor Screen |
|
Power Supply | Lithium-ion battery (Item Code: DNP-100M) x 1 |
Battery Life |
|
Dimensions | 127.5 (W) x 76.0 (H) x 86.1 (D) mm |
Weight |
|
Bundled Accessories |
|
Brochures | |
---|---|
Casiodermkit - Brochure | Product Manuals |
Casio DZ-D100 Camera & DZ-S50 Dermoscope Dermatology Kit - Product Manual |
Kit includes:
- Casio DZ-D100 Dermocamera,
- DAS-100M 3D and Small Diameter Adapters,
- DFP-100M Protective Film
- SanDisk 32GB Memory card
- Casio DZ-S50 Dermoscope and Conversion lens.
- HPRC 2350 Hard Case with Custom Foam Inserts.
Brand: Casio Dermatology |
Code: CASIODERMKIT
Brand: Casio Dermatology |
Code: CASIODERMKIT
At a glance
Digital dermatology camera kit for dermal observation and photography. Kit Contents
