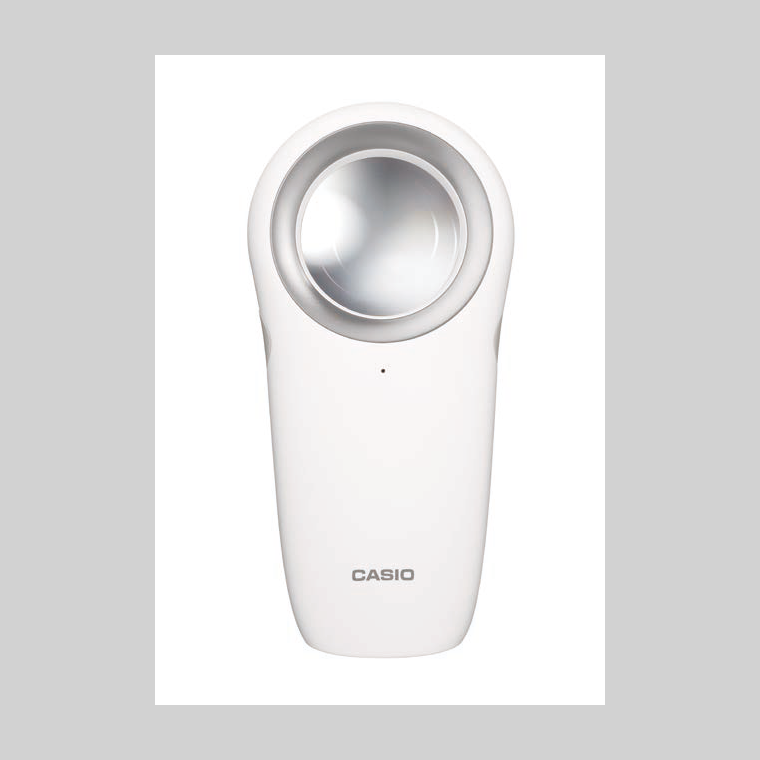

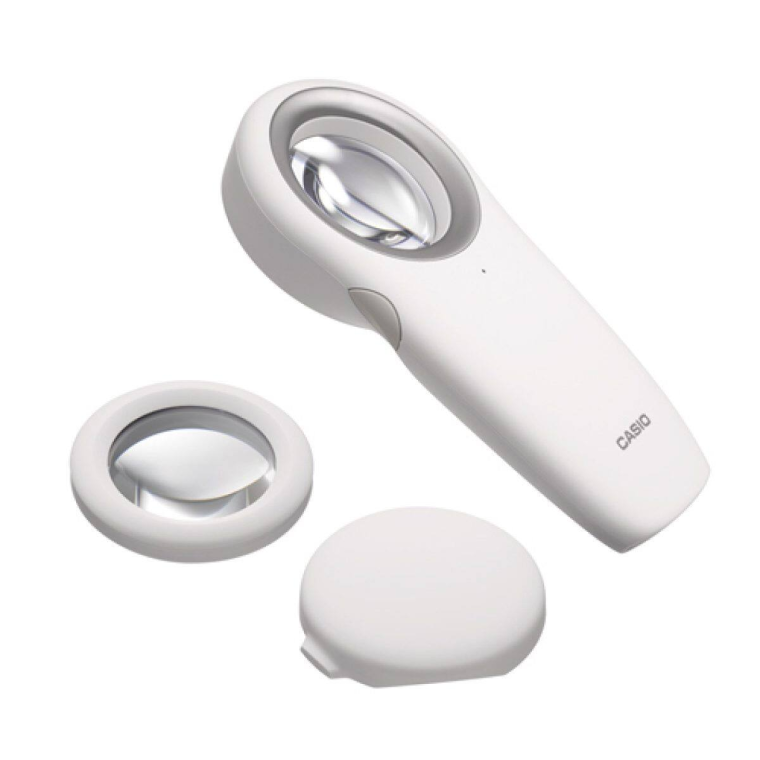

Casio DZ-S50 Dermoscope & Conversion Lens Set

Casio DZ-S50 Dermoscope & Conversion Lens Set

$1,637.00
in stock  IN STOCK
in stock  IN STOCK
in stock  IN STOCK
PRODUCT ENQUIRY

Dermoscope for dermal observation.
Brand: Casio Dermatology   |    Code: DZ-S50-SET
APN: 4549526500770   |    Supplier Code: Supplier Description: Dermoscope & Conversion Lens

Large Diameter Lens

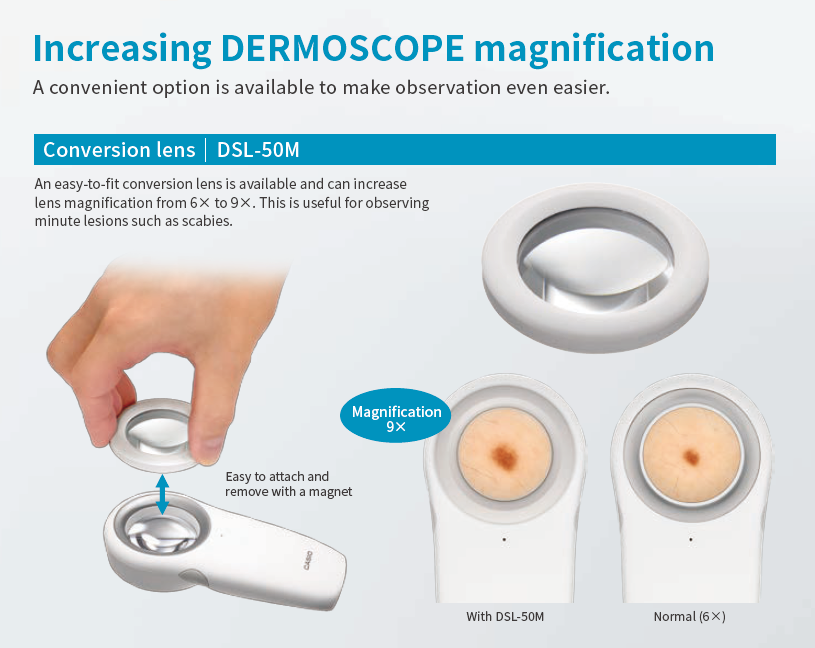

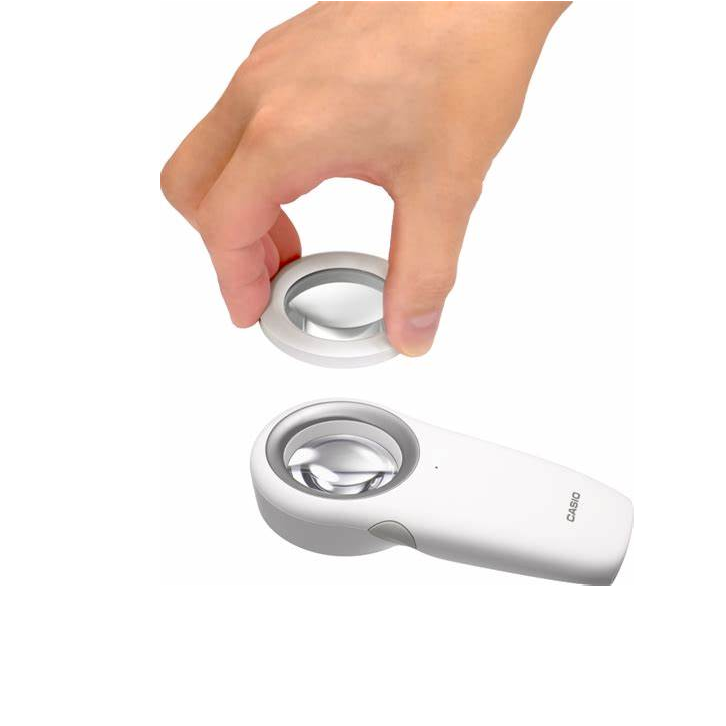

Features a large diameter 40.5mm lens with a wide field of vision and low distortion. Since it is easy to focus, users can observe lesions without putting their face right next to the affected area or making fine position adjustments. The magnification without the conversion lens is 6x. The magnification with the conversion lens attached is 9x.

Shape and Design

The grip fits comfortably in the hand, and the power and polarization switching buttons are located where the user’s fingers are positioned when holding it. The dermoscope is lightweight, at approximately 125g. The symmetrical shape can be used with either the left or right hand.

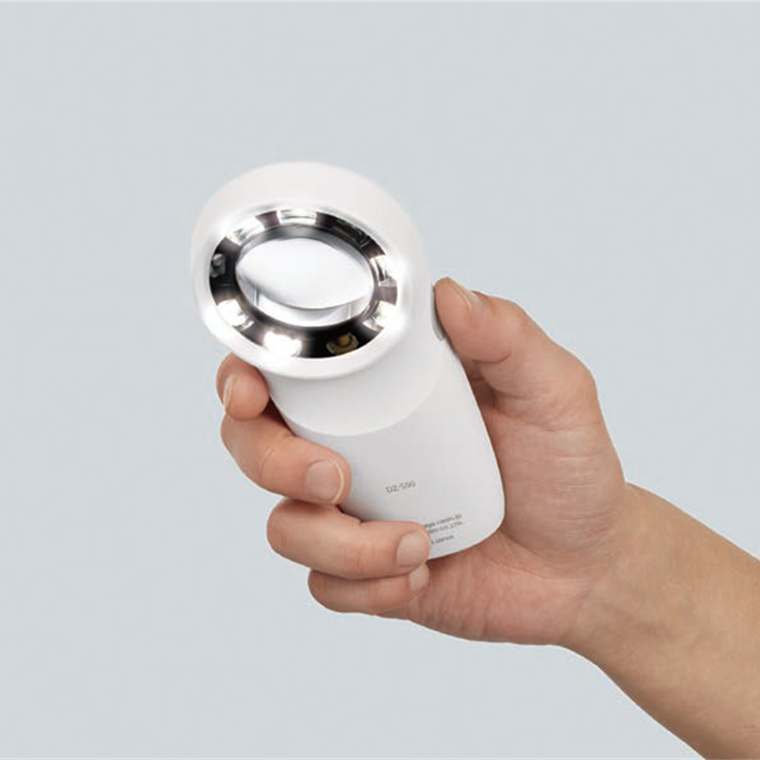

High Luminance LED Light

The LED light has an illumination intensity of 30,000lux, allowing users to see lesions clearly in sharp detail and assisting accurate observation of color. The device is energy efficient, allowing about 120 minutes of continuous use on a single charge. This reduces concern about keeping patients waiting during recharge.

Polarised / Non-Polarised Mode Switching

The LED light can be changed from polarized to non-polarized mode with a simple switch. Polarized mode works best for observing pigment distribution beneath the skin’s surface, while non-polarized mode is good for observing the condition of the skin’s surface.

Easier Visual Dermal Observation

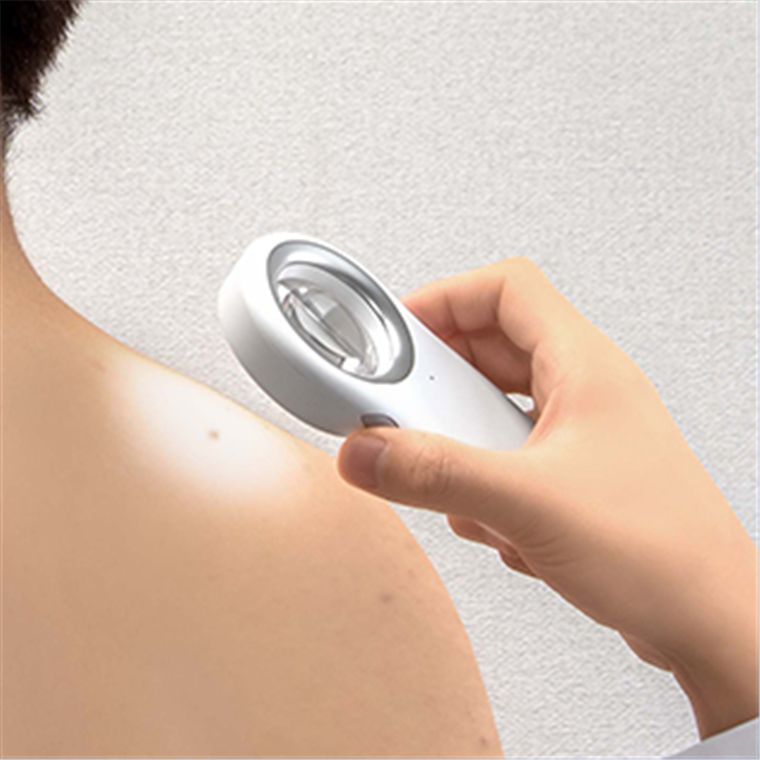

The compact footprint of the CASIO DERMOSCOPE features an easy-to-hold shape. The scope comes equipped with a large diameter lens and high luminance LED light. Users can switch between polarized and non-polarized light with one touch, allowing easier close up observation of lesions.

Auto Power Off

Power supply turns off automatically approximately three minutes after being turned on. This prevents the device being left unattended and reduces concerns about suddenly running out of battery power.

DZ-S50 SPECIFICATIONS
Size 67.5 x 140.2 x 23.1mm (W x H x D)
Weight Approximately 125g or 145g (with optional Conversion lens attached)
Lens Magnification
  • 6x Magnification
  • 9x Magnification (with optional Conversion Lens attached)
Maximum Effective Diameter 40.5mm
Number of LED lights
  • Polarised - 6 LED lights
  • Non-Polarised - 3 LED lights
Power Supply Lithium-ion battery (built-in)
Battery Life

    Approximately 120 min. (LED lights lit continuously)

  • The battery life figures are an approximate guide to how long the battery will last when used at a temperature of 23°C and constitute no guarantee of operating time.
  • Battery life will be shorter at lower temperatures.
  • These figures are for a new, fully charged battery.
  • Battery life will gradually shorten with repeated charging.
  • These figures are not guaranteed for battery life in actual use.
Service Life 5 Years
Operating Temperature Requirements 10°C to 35°C
Applicable Standards

    IEC60601-1

    IEC60601-1-2

Applicable emissions class/Group immunity test level

    CISPR11 group 1, class B

    IEC61000-4-3

  • Radiated RF electromagnetic field
  • Residential healthcare environments
  • IEC61000-4-6

  • Conducted disturbance caused by RF electromagnetic fields
  • Residential healtcare environments
Medical electrical equipment safety standards

    ME equipment with interal power supply (AC adaptor not used)

    Class II ME equipment (AC adaptor used

    ME equipment with no applied parts

Operating Mode

    Continuous operation (running)

  • Casio DZ-S50 Dermoscope.
  • AC adaptor for charging (AD- M50300A).
  • Casio DSL-50M High Magnification 9x Conversion Lens.
  • User’s Guide (including warranty).
This product has yet to be reviewed

To be the first to review this product simply fill out the form to the left and let us know how you feel about this product!


To estimate the freight on this item simply enter the destination postcode and the desired quantity and click the "estimate" button.

OVERVIEW

Large Diameter Lens

Features a large diameter 40.5mm lens with a wide field of vision and low distortion. Since it is easy to focus, users can observe lesions without putting their face right next to the affected area or making fine position adjustments. The magnification without the conversion lens is 6x. The magnification with the conversion lens attached is 9x.

Shape and Design

The grip fits comfortably in the hand, and the power and polarization switching buttons are located where the user’s fingers are positioned when holding it. The dermoscope is lightweight, at approximately 125g. The symmetrical shape can be used with either the left or right hand.

High Luminance LED Light

The LED light has an illumination intensity of 30,000lux, allowing users to see lesions clearly in sharp detail and assisting accurate observation of color. The device is energy efficient, allowing about 120 minutes of continuous use on a single charge. This reduces concern about keeping patients waiting during recharge.

Polarised / Non-Polarised Mode Switching

The LED light can be changed from polarized to non-polarized mode with a simple switch. Polarized mode works best for observing pigment distribution beneath the skin’s surface, while non-polarized mode is good for observing the condition of the skin’s surface.

FEATURES

Easier Visual Dermal Observation

The compact footprint of the CASIO DERMOSCOPE features an easy-to-hold shape. The scope comes equipped with a large diameter lens and high luminance LED light. Users can switch between polarized and non-polarized light with one touch, allowing easier close up observation of lesions.

Auto Power Off

Power supply turns off automatically approximately three minutes after being turned on. This prevents the device being left unattended and reduces concerns about suddenly running out of battery power.

SPECIFICATIONS

DZ-S50 SPECIFICATIONS
Size 67.5 x 140.2 x 23.1mm (W x H x D)
Weight Approximately 125g or 145g (with optional Conversion lens attached)
Lens Magnification
  • 6x Magnification
  • 9x Magnification (with optional Conversion Lens attached)
Maximum Effective Diameter 40.5mm
Number of LED lights
  • Polarised - 6 LED lights
  • Non-Polarised - 3 LED lights
Power Supply Lithium-ion battery (built-in)
Battery Life

    Approximately 120 min. (LED lights lit continuously)

  • The battery life figures are an approximate guide to how long the battery will last when used at a temperature of 23°C and constitute no guarantee of operating time.
  • Battery life will be shorter at lower temperatures.
  • These figures are for a new, fully charged battery.
  • Battery life will gradually shorten with repeated charging.
  • These figures are not guaranteed for battery life in actual use.
Service Life 5 Years
Operating Temperature Requirements 10°C to 35°C
Applicable Standards

    IEC60601-1

    IEC60601-1-2

Applicable emissions class/Group immunity test level

    CISPR11 group 1, class B

    IEC61000-4-3

  • Radiated RF electromagnetic field
  • Residential healthcare environments
  • IEC61000-4-6

  • Conducted disturbance caused by RF electromagnetic fields
  • Residential healtcare environments
Medical electrical equipment safety standards

    ME equipment with interal power supply (AC adaptor not used)

    Class II ME equipment (AC adaptor used

    ME equipment with no applied parts

Operating Mode

    Continuous operation (running)

IN THE BOX

  • Casio DZ-S50 Dermoscope.
  • AC adaptor for charging (AD- M50300A).
  • Casio DSL-50M High Magnification 9x Conversion Lens.
  • User’s Guide (including warranty).
