Casio DZ-S50 Dermoscope
- Pocket-size dermatoscope with a large-diameter lens equipped with high-brightness LED.
- Switch between polarized and non-polarized with one touch.

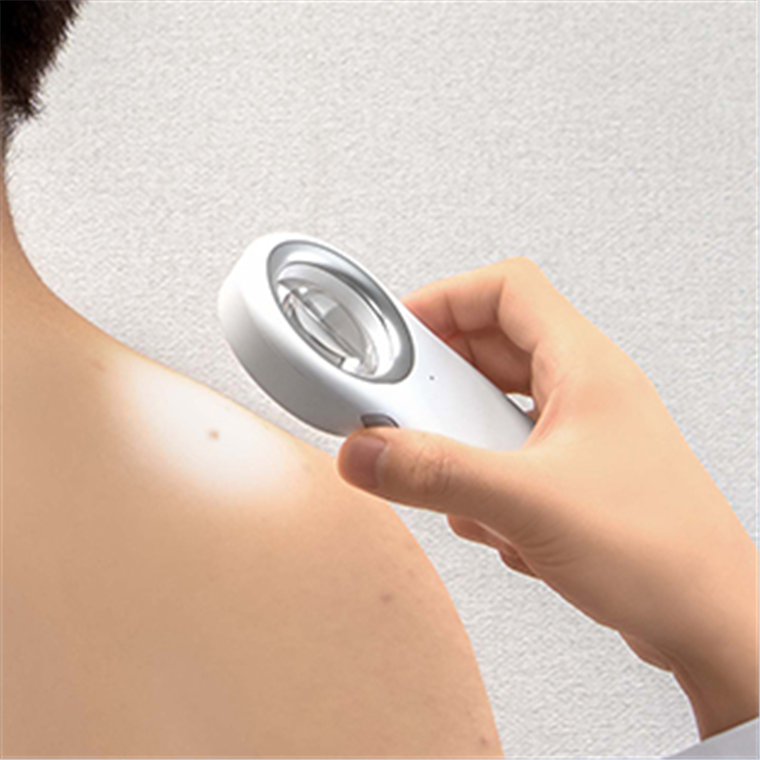

- Easily perform magnified observation of lesions.

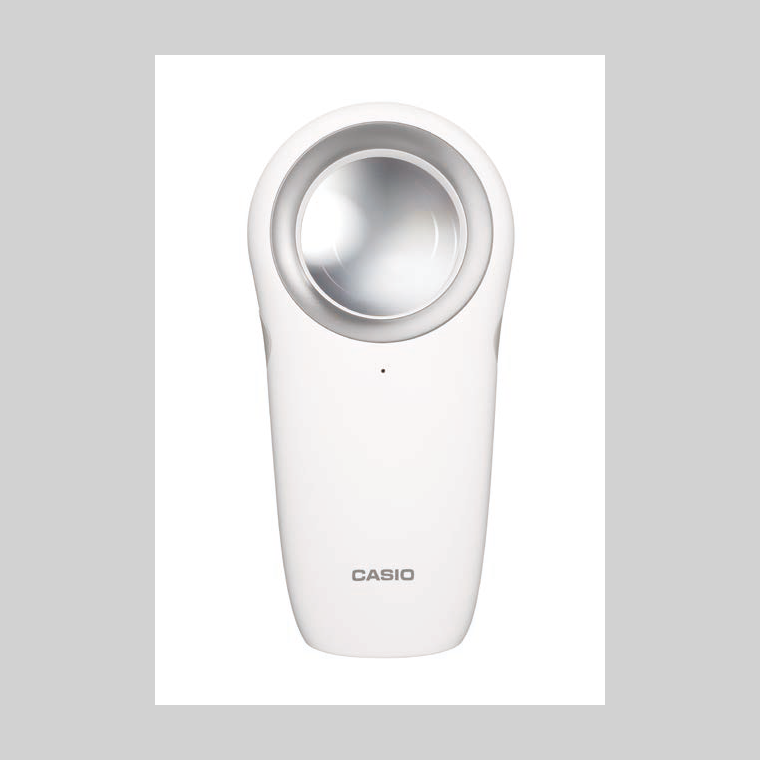

Large Diameter Lens

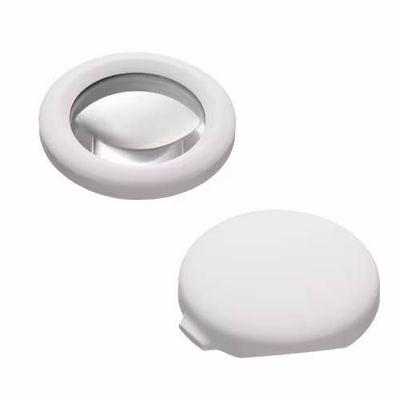

Features a large diameter 40.5mm lens with a wide field of vision and low distortion. Since it is easy to focus, users can observe lesions without putting their face right next to the affected area or making fine position adjustments. The magnification without the conversion lens is 6x. The magnification with the conversion lens attached is 9x.
Shape and Design
The grip fits comfortably in the hand, and the power and polarization switching buttons are located where the user’s fingers are positioned when holding it. The dermoscope is lightweight, at approximately 125g. The symmetrical shape can be used with either the left or right hand.

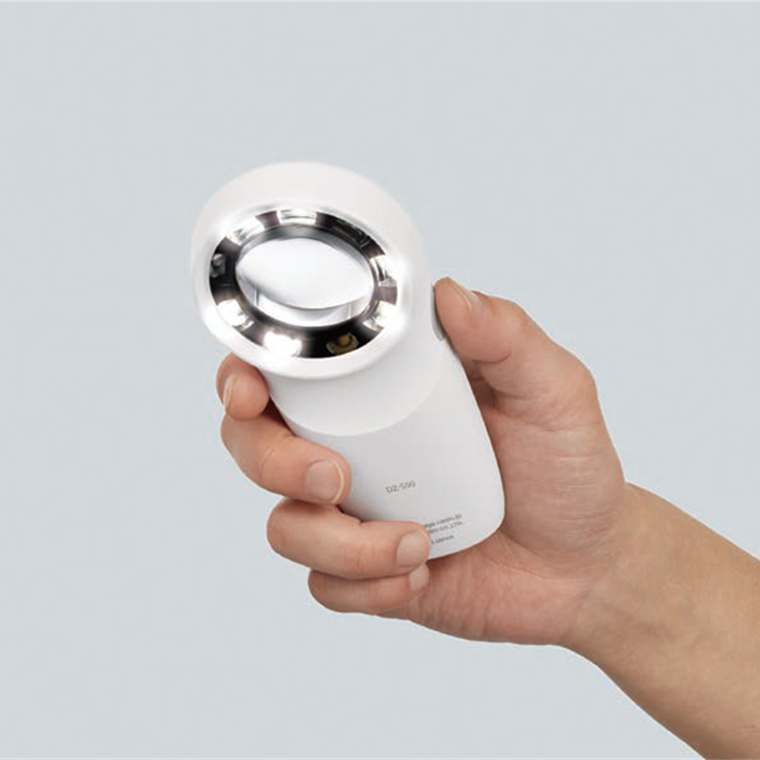

High Luminance LED Light
The LED light has an illumination intensity of 30,000lux, allowing users to see lesions clearly in sharp detail and assisting accurate observation of color. The device is energy efficient, allowing about 120 minutes of continuous use on a single charge. This reduces concern about keeping patients waiting during recharge.
Polarised / Non-Polarised Mode Switching
The LED light can be changed from polarized to non-polarized mode with a simple switch. Polarized mode works best for observing pigment distribution beneath the skin’s surface, while non-polarized mode is good for observing the condition of the skin’s surface.
| Model | DZ-S50 |
| Lens magnification | 6x/9x (with optional conversion lens attached) |
| Focal distance | f=50mm / f=31.25㎜ (with conversion lens attached) |
| Maximum effective diameter | 40.5mm (1.6") |
| No. of LED lights | Polarized (6), non-polarized (3) |
| Power supply | Lithium ion battery (built-in) |
| Power life | Approx. 120 minutes (LED lights lit continuously) |
| Size | 67.5 x 140.2 x 23.1mm (2.7" x 5.5" x 0.9") (W x H x D) |
| Weight | Approx. 125g (4.4oz), approx. 145g (5.1oz) (with optional conversion lens attached) |
| Bundled Accessories | AC adapter for charging (AD-M50500A), User's Guide (with warranty card), Insertion document |
| Brochures | |
|---|---|
| DZ-S50 - Brochure | Product Manuals |
| Casio DZ-S50 Dermoscope - Product Manual |
- Casio DZ-S50 Dermoscope
- AC adaptor for charging (AD- M50300A)
- User’s Guide (including warranty), additional documents.
Brand: Casio Dermatology |
Code: DZ-S50
APN: 4549526500756 |
Supplier Code: DZ-S50
Brand: Casio Dermatology |
Code: DZ-S50
APN: 4549526500756 |
Supplier Code: DZ-S50
At a glance
- Pocket-size dermatoscope with a large-diameter lens equipped with high-brightness LED.
- Switch between polarized and non-polarized with one touch.
- Easily perform magnified observation of lesions.
Large Diameter LensFeatures a large diameter 40.5mm lens with a wide field of vision and low distortion. Since it is easy to focus, users can observe lesions without putting their face right next to the affected area or making fine position adjustments. The magnification without the conversion lens is 6x. The magnification with the conversion lens attached is 9x.
|
|
|
|
Shape and DesignThe grip fits comfortably in the hand, and the power and polarization switching buttons are located where the user’s fingers are positioned when holding it. The dermoscope is lightweight, at approximately 125g. The symmetrical shape can be used with either the left or right hand.
|
High Luminance LED LightThe LED light has an illumination intensity of 30,000lux, allowing users to see lesions clearly in sharp detail and assisting accurate observation of color. The device is energy efficient, allowing about 120 minutes of continuous use on a single charge. This reduces concern about keeping patients waiting during recharge.
|
|
|
|
Polarised / Non-Polarised Mode SwitchingThe LED light can be changed from polarized to non-polarized mode with a simple switch. Polarized mode works best for observing pigment distribution beneath the skin’s surface, while non-polarized mode is good for observing the condition of the skin’s surface.
|
