FUJIFILM EG-580UT Linear Ultrasound Gastroscope

FUJIFILM EG-580UT Linear Ultrasound Gastroscope

PRODUCT ENQUIRY
The EG-580UT, an ultrasound endoscope with Forceps Elevator Assist which enables convex scanning, was developed for therapeutic interventions.
Brand: FujiFilm    Code: EG580UT
APN: 9319499762193    Supplier Code: EG580UT

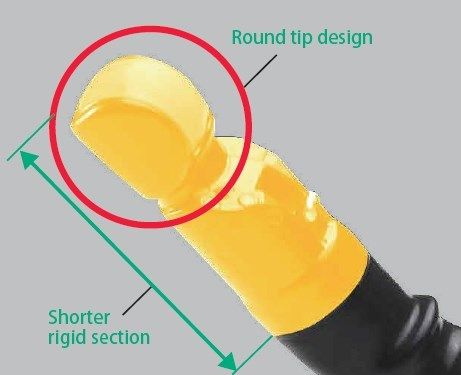

Improved Insertion Performance

The rounded tip section facilitates passage through narrow lumens and the shorter rigid section helps the endoscope pass through tight angles in the larynx. The 40 degree forward oblique view and 140 degree wide angle reduce the difficulty of managing the endoscope's insertion route.

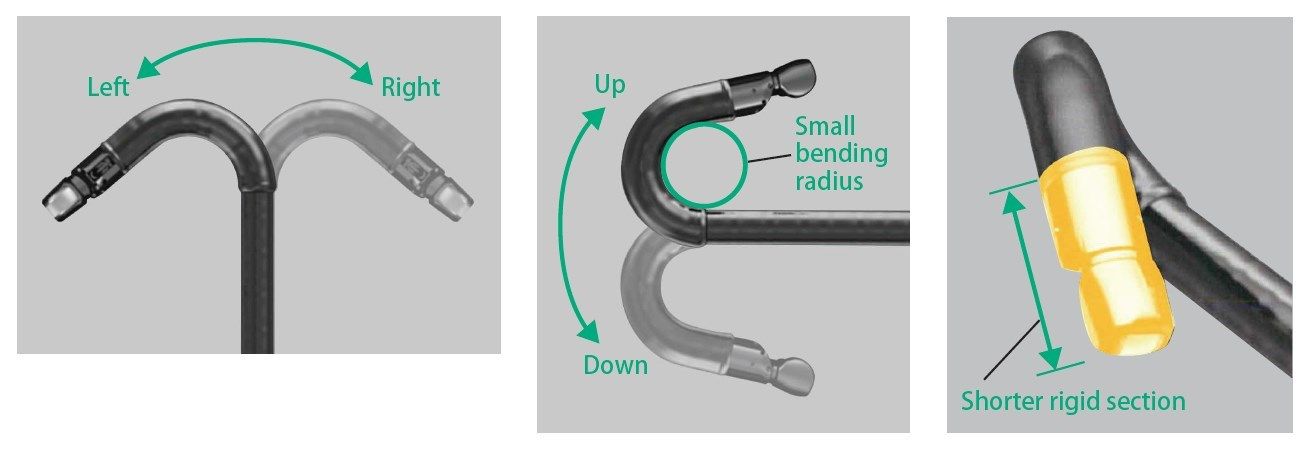

Improved Observation Performance

A wide area can be covered with minimal work using powerful bending functions (UP150°/DOWN150°/LEFT120°/RIGHT120°). Furthermore, access to target positions has improved due to the shorter rigid section and smaller bending radius.

GENERAL
Field of View 140°
Viewing Direction Forward with 40° angle
Observation Range 3~100 mm
Bending capability
  • UP: 120° DOWN: 120°
  • RIGHT: 150° LEFT: 150°
Working length 1,250 mm
Total length 1,550 mm
Distal end diameter 13.9 mm
Insertion tube diameter 12.4 mm
Working channel diameter 3.8 mm
Scanning area 150°
Scanning mode Colour Doppler / Power Doppler / Pulse Doppler / B-Mode / M-Mode
Centre Frequencies 5 MHz / 7.5MHz / 10 MHz / 12 MHz
Contact Method Balloon method / contact method (without balloon)
PRODUCT MANUALS
FUJIFILM EG-580UT Linear Ultrasound Gastroscope - Product Manual

FEATURES

Improved Insertion Performance

The rounded tip section facilitates passage through narrow lumens and the shorter rigid section helps the endoscope pass through tight angles in the larynx. The 40 degree forward oblique view and 140 degree wide angle reduce the difficulty of managing the endoscope's insertion route.

Improved Observation Performance

A wide area can be covered with minimal work using powerful bending functions (UP150°/DOWN150°/LEFT120°/RIGHT120°). Furthermore, access to target positions has improved due to the shorter rigid section and smaller bending radius.

SPECIFICATIONS

GENERAL
Field of View 140°
Viewing Direction Forward with 40° angle
Observation Range 3~100 mm
Bending capability
  • UP: 120° DOWN: 120°
  • RIGHT: 150° LEFT: 150°
Working length 1,250 mm
Total length 1,550 mm
Distal end diameter 13.9 mm
Insertion tube diameter 12.4 mm
Working channel diameter 3.8 mm
Scanning area 150°
Scanning mode Colour Doppler / Power Doppler / Pulse Doppler / B-Mode / M-Mode
Centre Frequencies 5 MHz / 7.5MHz / 10 MHz / 12 MHz
Contact Method Balloon method / contact method (without balloon)
